Part Number	IXTP152N085T
Manufacturer	Littelfuse / IXYS RF
Other Part Numbers	IXTP152N085T-ND
Description	MOSFET N-CH 85V 152A TO220AB
Detailed Description	N-Channel 85 V 152A (Tc) 360W (Tc) Through Hole TO-220-3

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Littelfuse / IXYS RF
Series		TrenchMV™
Packaging		Tube
Part Status		Obsolete

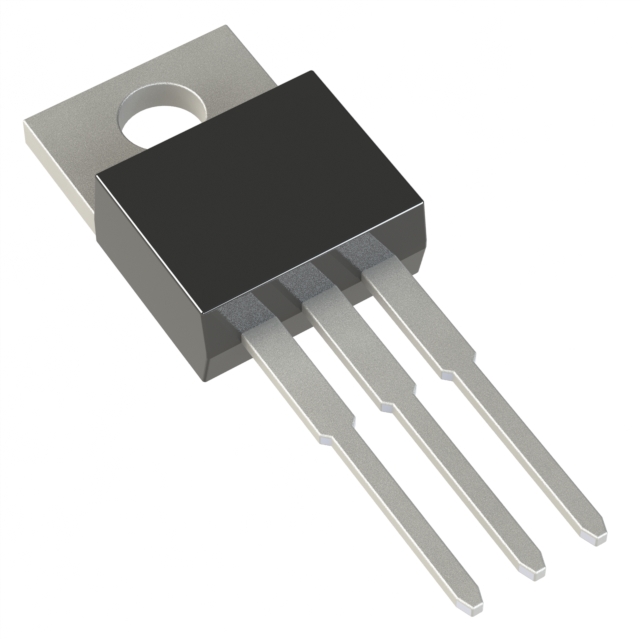

Package / Case		TO-220-3
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		152A (Tc)
Rds On (Max) @ Id, Vgs		7mOhm @ 25A, 10V
Power Dissipation (Max)		360W (Tc)
Vgs(th) (Max) @ Id		4V @ 250µA
Supplier Device Package		TO-220-3
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		85 V
Gate Charge (Qg) (Max) @ Vgs		114 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		5500 pF @ 25 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

This product is no longer manufactured.
