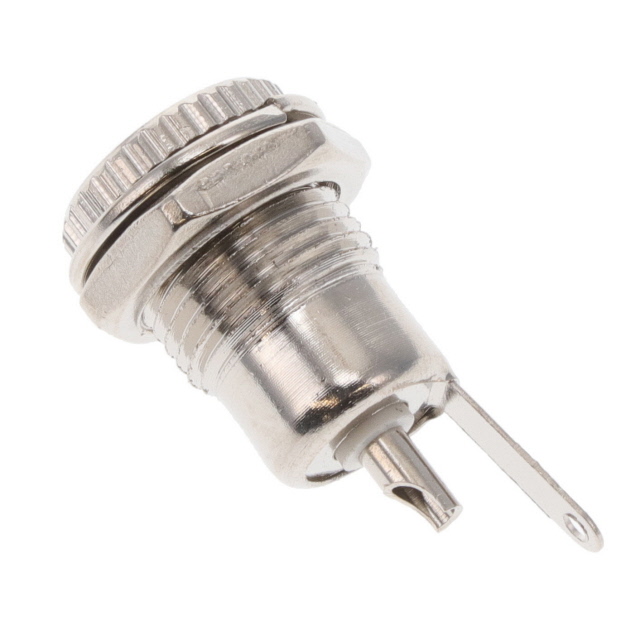

JACK-L-PANEL-8A(R) _ Power Connectors_Barrel Connectors_Connectors, Interconnects

Part Number	JACK-L-PANEL-8A(R)
Manufacturer	GlobTek, Inc.
Other Part Numbers	1939-1714-ND 1939-1714
Description	CONN PWR JACK 2.50MMX5.50MM SLDR
Detailed Description	Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Panel Mount
Datasheet	Datasheet

Category		Connectors, Interconnects Barrel Connectors Power Connectors
Manufacturer		GlobTek, Inc.
Series
Packaging		Bulk
Part Status		Active
Features		Mounting Hardware
Voltage - Rated		50VDC
Connector Type		Jack
Gender		Male
Mounting Type		Panel Mount
Operating Temperature		-25°C ~ 85°C
Number of Positions/Contacts		2 Conductors, 2 Contacts
Internal Switch(s)		Does Not Contain Switch
Termination		Solder Cup, Solder Eyelet
Material Flammability Rating		UL94 V-0
Mounting Feature		Bulkhead - Rear Side Nut
Contact Material		Brass
Housing Material		Brass
Body Color		Silver
Contact Material - Plating		Gold
Actual Diameter		0.098" (2.50mm ID), 0.224" (5.70mm OD)
Industry Recognized Mating Diameter		2.50mm ID (0.098"), 5.50mm OD (0.217")
Current Rating (Amps)		8 A

RESOURCE TYPE		LINK
Datasheets		JACK-L-PANEL-8A(R)
Datasheets		GlobTek CA Prop65
Datasheets		GlobTek RoHS
Datasheets		Globtek REACH
Datasheets		Datasheet update 24/JAN/2024
Datasheets		Update operating temperature 03/NOV/2022
Datasheets		JACK-L-PANEL-8A(R) Drawing

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
