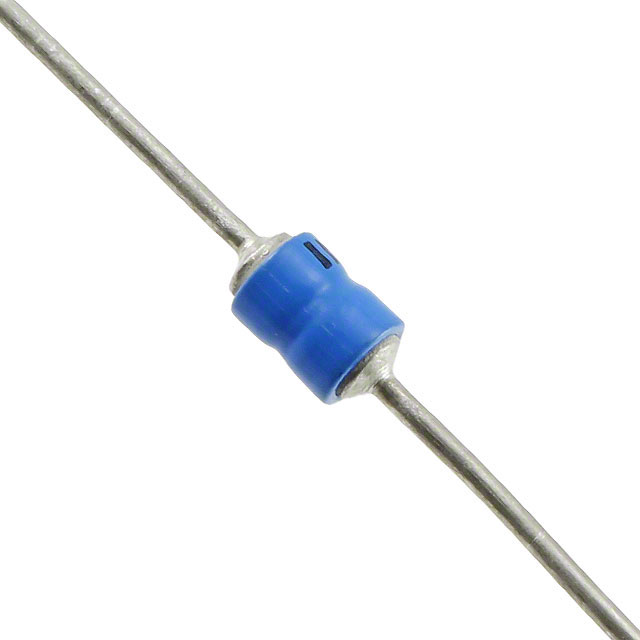

JAN1N6118A

Part Number
JAN1N6118A
Manufacturer Roving Networks (Microchip Technology)
Other Part Numbers
1086-2190-ND
1086-2190
1086-2190-MIL
Description TVS DIODE 25.1VWM 45.7VC AXIAL
Detailed Description 45.7V Clamp 10.9A Ipp Tvs Diode Through Hole B, Axial
Manufacturer Standard Lead Time 25 weeks

Product Attributes

Category
Manufacturer Roving Networks (Microchip Technology)
Series
Packaging
Bulk
Part Status Active
Package / Case B, Axial
Mounting Type Through Hole
Type Zener
Operating Temperature -55°C ~ 175°C (TJ)
Applications General Purpose
Current - Peak Pulse (10/1000µs) 10.9A
Voltage - Reverse Standoff (Typ) 25.1V
Supplier Device Package B, Axial
Bidirectional Channels 1
Voltage - Breakdown (Min) 31.4V
Voltage - Clamping (Max) @ Ipp 45.7V
Power - Peak Pulse 500W
Power Line Protection No
Grade Military
Qualification MIL-PRF-19500/516

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
