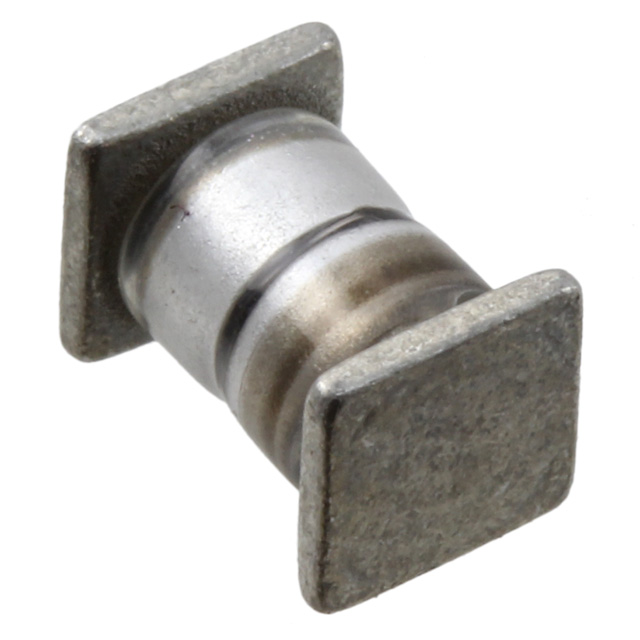

JANTX1N6106US

Part Number
JANTX1N6106US
Manufacturer Roving Networks (Microchip Technology)
Other Part Numbers
1086-2501-ND
1086-2501
1086-2501-MIL
Description TVS DIODE 7.6VWM 15.23VC SQ-MELF
Detailed Description 15.23V Clamp 32.78A Ipp Tvs Diode Surface Mount B, SQ-MELF
Manufacturer Standard Lead Time 25 weeks

Product Attributes

Category
Manufacturer Roving Networks (Microchip Technology)
Series
Packaging
Bulk
Part Status Active
Package / Case SQ-MELF, B
Mounting Type Surface Mount
Type Zener
Operating Temperature -55°C ~ 175°C (TJ)
Applications General Purpose
Current - Peak Pulse (10/1000µs) 32.78A
Voltage - Reverse Standoff (Typ) 7.6V
Supplier Device Package B, SQ-MELF
Bidirectional Channels 1
Voltage - Breakdown (Min) 9.03V
Voltage - Clamping (Max) @ Ipp 15.23V
Power - Peak Pulse 500W
Power Line Protection No
Grade Military
Qualification MIL-PRF-19500/516

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant
