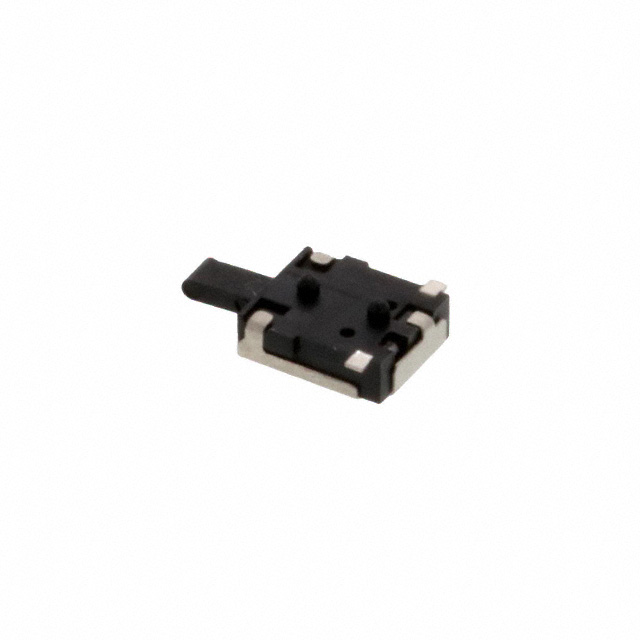

JJDVUUG305NOPMRTR

JJDVUUG305NOPMRTR

Part Number	JJDVUUG305NOPMRTR
Manufacturer	TE Connectivity ALCOSWITCH Switches
Other Part Numbers	450-3309-2-ND 450-3309-1-ND JJDVDUG305NOPPRTR 2266-JJDVUUG305NOPMRTR 450-3309-1 2331408-1 450-3309-2
Description	SWITCH DETECTOR SPST-NO 0.01A 5V
Detailed Description	Switch SPST-NO Surface Mount
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Limit Switches
Manufacturer		TE Connectivity ALCOSWITCH Switches
Series		JJD
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Board Guide
Current Rating (Amps)		10mA (DC)
Mounting Type		Surface Mount
Circuit		SPST-NO
Switch Function		Off-Mom
Operating Temperature		-10°C ~ 60°C
Termination Style		Gull Wing
Actuator Type		Angled Toggle (Detector)
Operating Force		40gf
Pretravel		0.057" (1.45mm)
Operating Position		0.063" (1.6mm)
Voltage Rating - DC		5 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		JJDVUUG305NOPMRTR
Datasheets		JJDVUUG305NOPMRTR Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.7000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 6282

Can ship immediately.
