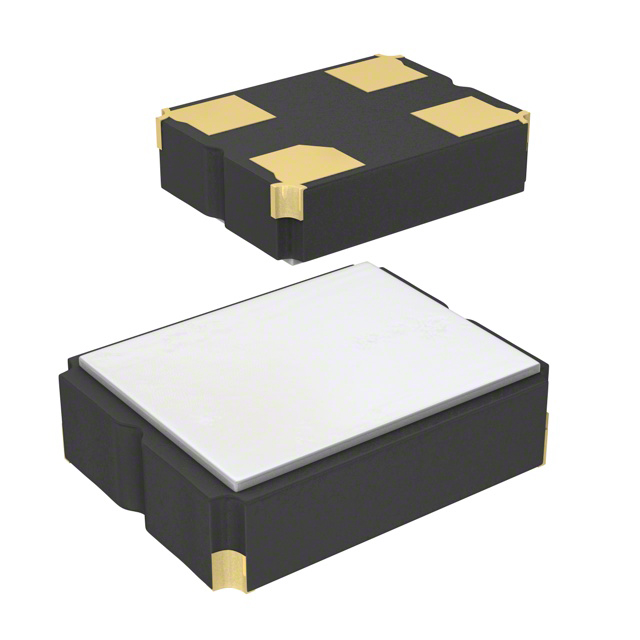

KC2016Z1.84320C1KX00

KC2016Z1.84320C1KX00

Part Number	KC2016Z1.84320C1KX00
Manufacturer	KYOCERA AVX
Other Part Numbers	478-KC2016Z1.84320C1KX00TR-ND 478-KC2016Z1.84320C1KX00CT-ND 478-KC2016Z1.84320C1KX00DKR-ND 1253-KC2016Z1.84320C1KX00DKR-ND 1253-KC2016Z1.84320C1KX00TR-ND 1253-KC2016Z1.84320C1KX00CT-ND 478-KC2016Z1.84320C1KX00-ND 1253-KC2016Z1.84320C1KX00DKR 1253-KC2016Z1.84320C1KX00CT 1253-KC2016Z1.84320C1KX00TR 478-KC2016Z1.84320C1KX00 478-KC2016Z1.84320C1KX00TR 478-KC2016Z1.84320C1KX00DKR 478-KC2016Z1.84320C1KX00CT
Description	CLOCK OSCILLATOR,2.0X1.6X0.8MM S
Detailed Description	1.8432 MHz XO (Standard) CMOS Oscillator 1.71V ~ 3.63V Standby (Power Down) 4-SMD, No Lead
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		KYOCERA AVX
Series		KC2016Z
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Size / Dimension		0.079" L x 0.063" W (2.00mm x 1.60mm)
Mounting Type		Surface Mount
Output		CMOS
Function		Standby (Power Down)
Type		XO (Standard)
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±20ppm
Voltage - Supply		1.71V ~ 3.63V
Current - Supply (Max)		5.8mA
Current - Supply (Disable) (Max)		5µA
Height - Seated (Max)		0.031" (0.80mm)
Frequency		1.8432 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		KC2016Z1.84320C1KX00

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
