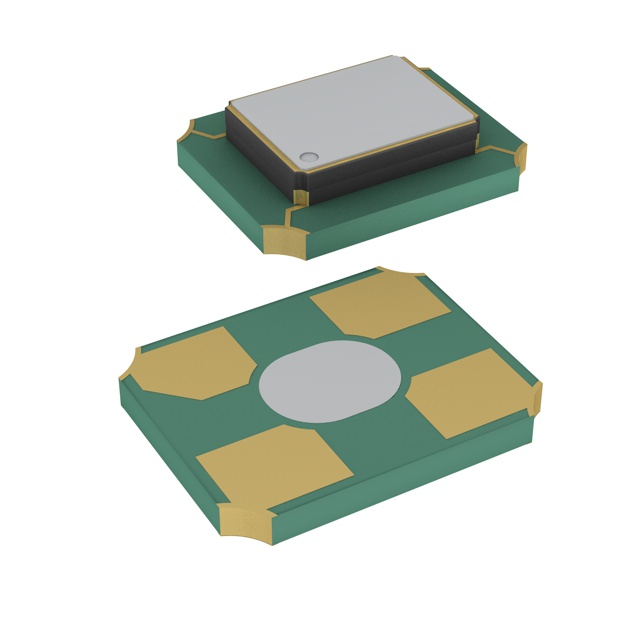

KC3225Z100.000C15XXK

KC3225Z100.000C15XXK

Part Number	KC3225Z100.000C15XXK
Manufacturer	KYOCERA AVX
Other Part Numbers	478-KC3225Z100.000C15XXKTR-ND 478-KC3225Z100.000C15XXKCT-ND 478-KC3225Z100.000C15XXKDKR-ND 478-KC3225Z100.000C15XXKCT 478-KC3225Z100.000C15XXK 1253-KC3225Z100.000C15XXKTR-ND 1253-KC3225Z100.000C15XXKDKR-ND 478-KC3225Z100.000C15XXK-ND 1253-KC3225Z100.000C15XXKDKR 1253-KC3225Z100.000C15XXKTR 478-KC3225Z100.000C15XXKDKR 478-KC3225Z100.000C15XXKTR 1253-KC3225Z100.000C15XXKCT-ND 1253-KC3225Z100.000C15XXKCT
Description	XTAL OSC XO 100.0000MHZ CMOS SMD
Detailed Description	100 MHz XO (Standard) CMOS Oscillator 1.71V ~ 3.63V Standby (Power Down) 4-SMD, No Lead
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		KYOCERA AVX
Series		KC3225Z
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Size / Dimension		0.126" L x 0.098" W (3.20mm x 2.50mm)
Mounting Type		Surface Mount
Output		CMOS
Function		Standby (Power Down)
Type		XO (Standard)
Operating Temperature		-40°C ~ 105°C
Frequency Stability		±30ppm
Voltage - Supply		1.71V ~ 3.63V
Current - Supply (Max)		14.5mA
Current - Supply (Disable) (Max)		5µA
Height - Seated (Max)		0.031" (0.80mm)
Frequency		100 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		KC3225Z100.000C15XXK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 4288

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$1.16	$1.16
Total Amount: $1.16

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
2,000	$0.76	$1,520.00
4,000	$0.72	$2,880.00
6,000	$0.70	$4,200.00
10,000	$0.67	$6,700.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$1.16	$1.16
10	$1.11	$11.10
50	$1.08	$54.00
100	$0.93	$93.00
500	$0.90	$450.00
1,000	$0.76	$760.00
