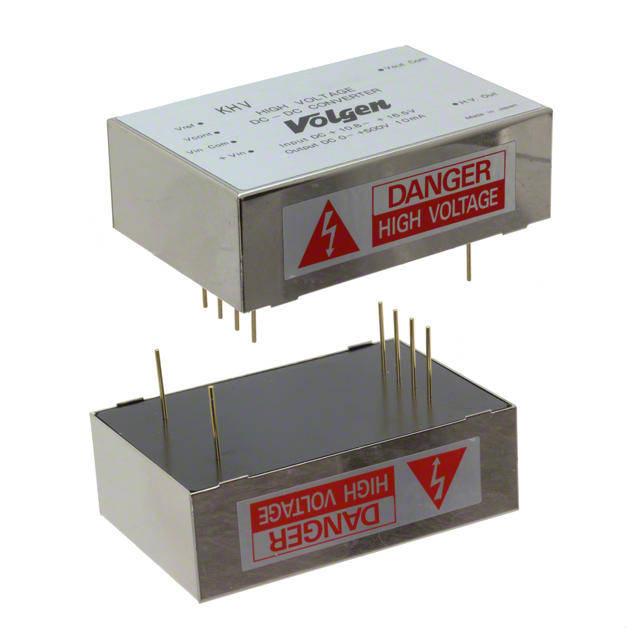

KHV12-1.0K5000N

KHV12-1.0K5000N

Part Number	KHV12-1.0K5000N
Manufacturer	Volgen (Kaga Electronics USA)
Other Part Numbers	62-1273-ND KHV-12-1.0K5000N V100-4181 62-1273
Description	DC DC CONVERTER -1000V 5W
Detailed Description	High Voltage - Non-Isolated Module DC DC Converter 1 Output -1000V 5mA 10.8V - 16.5V Input
Manufacturer Standard Lead Time	24 weeks
Datasheet	Datasheet

Product Attributes

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		Volgen (Kaga Electronics USA)
Series		KHV (5W)
Packaging		Bulk
Part Status		Active
Features		OCP
Package / Case		7-DIP Module
Size / Dimension		2.36" L x 1.57" W x 0.79" H (60.0mm x 40.0mm x 20.0mm)
Mounting Type		Through Hole
Type		High Voltage - Non-Isolated Module
Operating Temperature		-10°C ~ 50°C
Applications		ITE (Commercial)
Voltage - Input (Max)		16.5V
Current - Output (Max)		5mA
Voltage - Input (Min)		10.8V
Voltage - Output 1		-1000V
Power (Watts)		5 W
Number of Outputs		1

Documents & Media

RESOURCE TYPE		LINK
Datasheets		KHV12-1.0K5000N

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
