Part Number |
KTPS200-18110
|
---|---|
Manufacturer | Volgen (Kaga Electronics USA) |
Other Part Numbers |
62-1188-ND
62-1188
KTPS20018110
|

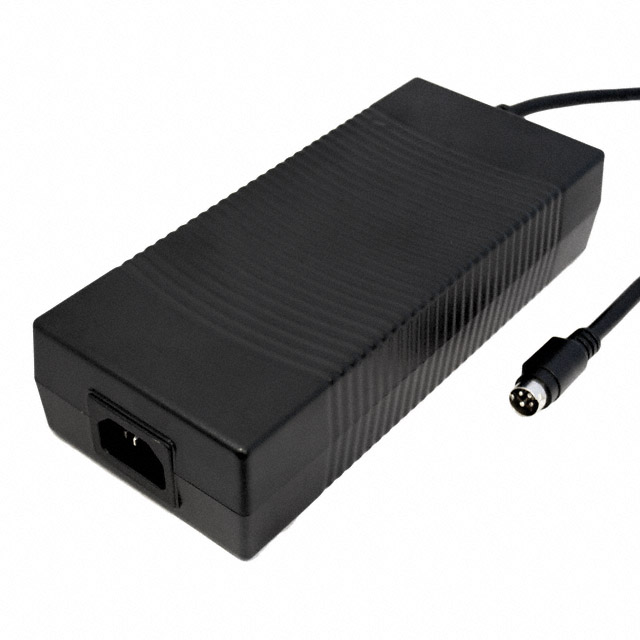

Description | AC/DC DESKTOP ADAPTER 18V 198W |
Detailed Description | 18V 198 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input |
Category | ||
---|---|---|
Manufacturer | Volgen (Kaga Electronics USA) | |
Series |
KTPS200 (200W)
|
|
Packaging |
Bulk
|
|
Part Status | Obsolete | |
Size / Dimension | 7.20" L x 3.19" W x 1.67" H (183.0mm x 81.0mm x 42.3mm) | |
Voltage - Output | 18V | |
Output Connector | Power DIN, 4 Pin | |
Voltage - Input | 100 ~ 240 VAC | |
Cord Length | 47.2" (1.20m) | |
Operating Temperature | 0°C ~ 40°C | |
Applications | ITE (Commercial) | |
Input Type | Cord (Sold Separately) | |
Approval Agency | IEC | |
Form | Desktop (Class I) | |
Efficiency | Level V | |
Current - Output (Max) | 11A | |
Input Connector | IEC 320-C14 | |
Region Utilized | International | |
Power (Watts) | 198 W | |
Standard Number | 60950-1 |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8504.40.9530 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
RoHS Status | RoHS Compliant |
