L721A _ Power Connectors_Barrel Connectors_Connectors, Interconnects

Part Number	L721A
Manufacturer	Switchcraft / Conxall
Other Part Numbers	SC3511-ND SC3511
Description	LONGER BUSHING D-FLA

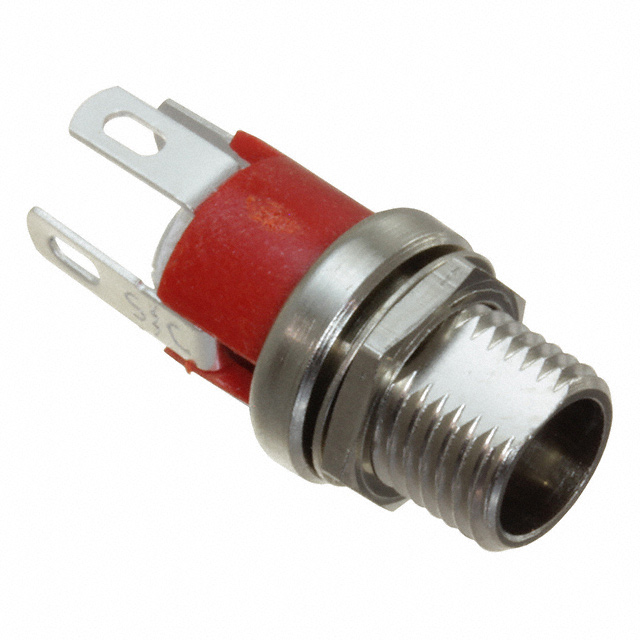

Detailed Description	Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Panel Mount, Through Hole
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Barrel Connectors Power Connectors
Manufacturer		Switchcraft / Conxall
Series
Packaging		Bulk
Part Status		Active
Features		Mounting Hardware, Thread Lock
Voltage - Rated		30VDC
Connector Type		Jack
Gender		Male
Mounting Type		Panel Mount, Through Hole
Shielding		Unshielded
Thread Size		5/16"-32
Operating Temperature		-40°C ~ 65°C
Number of Positions/Contacts		2 Conductors, 3 Contacts
Internal Switch(s)		Single Switch, Normally Closed
Termination		Solder Eyelet(s)
Mounting Feature		Bulkhead - Front Side Nut
Contact Material		Copper Alloy
Housing Material		Thermoplastic
Body Material		Copper Alloy
Body Color		Red, Silver
Contact Material - Plating		Silver
Actual Diameter		0.083" (2.10mm ID), 0.217" (5.50mm OD)
Mating Length/Depth		0.476" (12.10mm)
Industry Recognized Mating Diameter		2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps)		5 A

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4030
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
