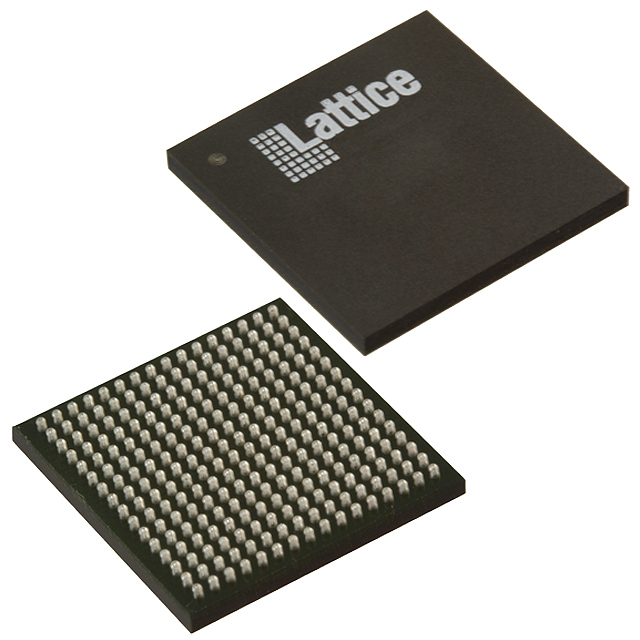

LCMXO3LF-4300E-5MG256C

LCMXO3LF-4300E-5MG256C

Part Number	LCMXO3LF-4300E-5MG256C
Manufacturer	Lattice Semiconductor
Other Part Numbers	LCMXO3LF-4300E-5MG256C-ND
Description	IC FPGA 206 I/O 256CSFBGA
Detailed Description	MachXO3 Field Programmable Gate Array (FPGA) IC 206 94208 4320 256-VFBGA, CSPBGA
Manufacturer Standard Lead Time	20 weeks

Product Attributes

Category		Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array)
Manufacturer		Lattice Semiconductor
Series		MachXO3
Packaging		Tray
Part Status		Active
Package / Case		256-VFBGA, CSPBGA
Mounting Type		Surface Mount
Operating Temperature		0°C ~ 85°C (TJ)
Voltage - Supply		1.14V ~ 1.26V
Number of Logic Elements/Cells		4320
Supplier Device Package		256-CSFBGA (9x9)
Number of LABs/CLBs		540
Total RAM Bits		94208
Number of I/O		206
DigiKey Programmable		Not Verified

Documents & Media

RESOURCE TYPE		LINK
Datasheets		LCMXO3LF-4300E-5MG256C
Datasheets		Datasheet Chg 21/Mar/2016
Datasheets		Top Mark Format Change 20/Dec/2023
Datasheets		Mult Dev Assembly Chg 13/Jan/2020
Datasheets		All Dev Pkg Mark Chg 12/Nov/2018

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		3A991D
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 260

Can ship immediately.
