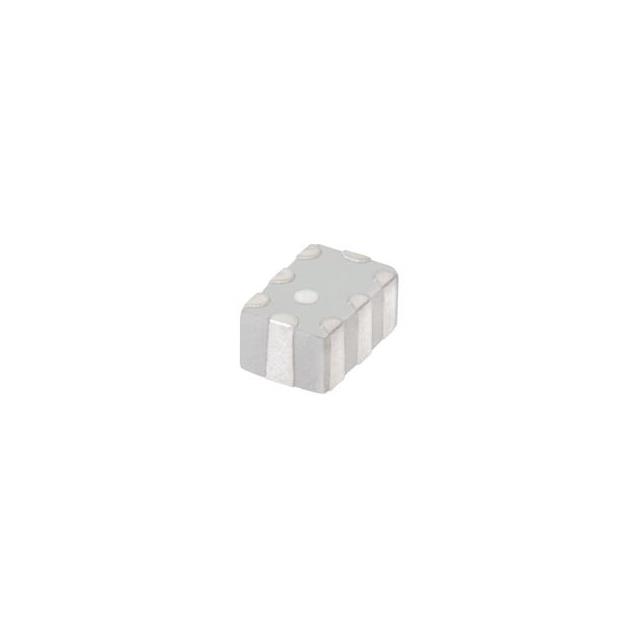

LFCG-510+

LFCG-510+

Part Number	LFCG-510+
Manufacturer	Mini-Circuits
Other Part Numbers	3157-LFCG-510+TR-ND 3157-LFCG-510+CT-ND 3157-LFCG-510+DKR-ND 3157-LFCG-510+TR 3157-LFCG-510+CT 3157-LFCG-510+DKR
Description	LTCC LPF, DC - 510 MHZ, 50
Detailed Description	660MHz (Cutoff) Frequency Low Pass RF Filter (Radio Frequency) 510MHz Bandwidth 2dB 0805 (2012 Metric), 8 PC Pad
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters RF Filters
Manufacturer		Mini-Circuits
Series		LFCG
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		0805 (2012 Metric), 8 PC Pad
Filter Type		Low Pass
Size / Dimension		0.079" L x 0.049" W (2.00mm x 1.25mm)
Mounting Type		Surface Mount
Frequency		660MHz (Cutoff)
Insertion Loss		2dB
Bandwidth		510MHz
Height (Max)		0.042" (1.08mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		LFCG-510+

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

In Stock: 937

Can ship immediately.
