LLP.2500.X.B.30

LLP.2500.X.B.30

Part Number	LLP.2500.X.B.30
Manufacturer	Taoglas
Other Part Numbers	931-LLP.2500.X.B.30TR-ND 931-LLP.2500.X.B.30CT-ND 931-LLP.2500.X.B.30DKR-ND 931-LLP.2500.X.B.30TR 931-LLP.2500.X.B.30DKR 931-LLP.2500.X.B.30CT

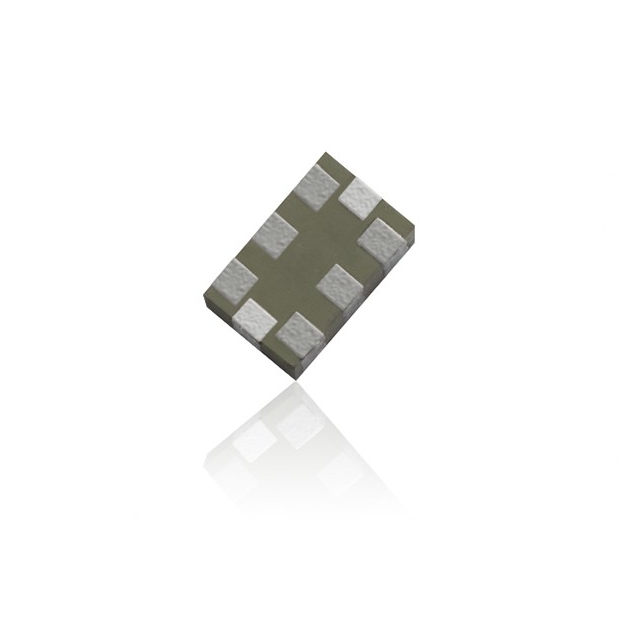

Description	RF FILTER LOW PASS 2.45GHZ 0805
Detailed Description	2.45GHz Center Frequency Low Pass RF Filter (Radio Frequency) 100MHz Bandwidth 0.5dB 0805 (2012 Metric), 8 PC Pad
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters RF Filters
Manufacturer		Taoglas
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		0805 (2012 Metric), 8 PC Pad
Filter Type		Low Pass
Size / Dimension		0.079" L x 0.049" W (2.00mm x 1.25mm)
Mounting Type		Surface Mount
Frequency		2.45GHz Center
Insertion Loss		0.5dB
Bandwidth		100MHz
Ripple		0.5dB
Height (Max)		0.045" (1.15mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Taoglas Limited RoHS

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1517

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$0.47	$0.47
Total Amount: $0.47

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
4,000	$0.41	$1,640.00
8,000	$0.38	$3,040.00
12,000	$0.36	$4,320.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$0.47	$0.47
100	$0.44	$44.00
500	$0.43	$215.00
1,000	$0.41	$410.00
