LM2595SX-12 _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	LM2595SX-12
Manufacturer	National Semiconductor
Other Part Numbers	2156-LM2595SX-12-ND NATNSCLM2595SX-12 2156-LM2595SX-12
Description	IC REG BUCK 12V 1A DDPAK
Detailed Description	Buck Switching Regulator IC Positive Fixed 12V 1 Output 1A TO-263-6, D2PAK (5 Leads + Tab), TO-263BA

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		National Semiconductor
Series		SIMPLE SWITCHER®
Packaging		Bulk
Part Status		Active

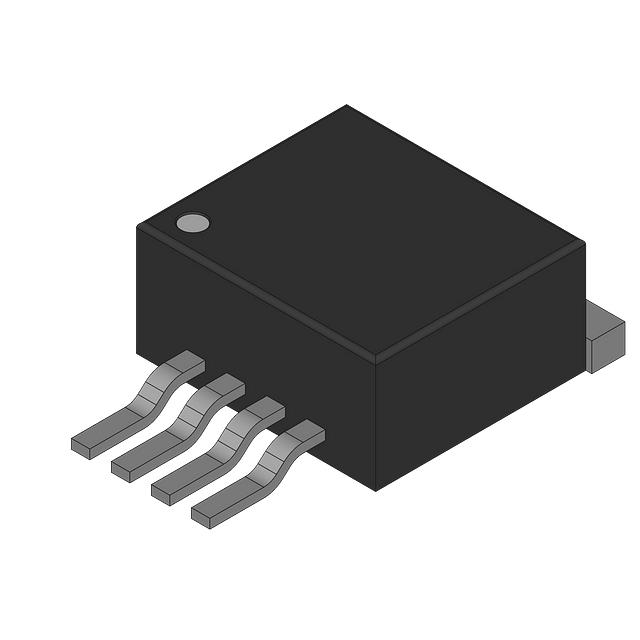

Package / Case		TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Output Type		Fixed
Mounting Type		Surface Mount
Number of Outputs		1
Function		Step-Down
Current - Output		1A
Operating Temperature		-40°C ~ 125°C (TJ)
Output Configuration		Positive
Frequency - Switching		150kHz
Voltage - Input (Max)		40V
Topology		Buck
Supplier Device Package		DDPAK/TO-263-5
Synchronous Rectifier		No
Voltage - Input (Min)		4.5V
Voltage - Output (Min/Fixed)		12V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
