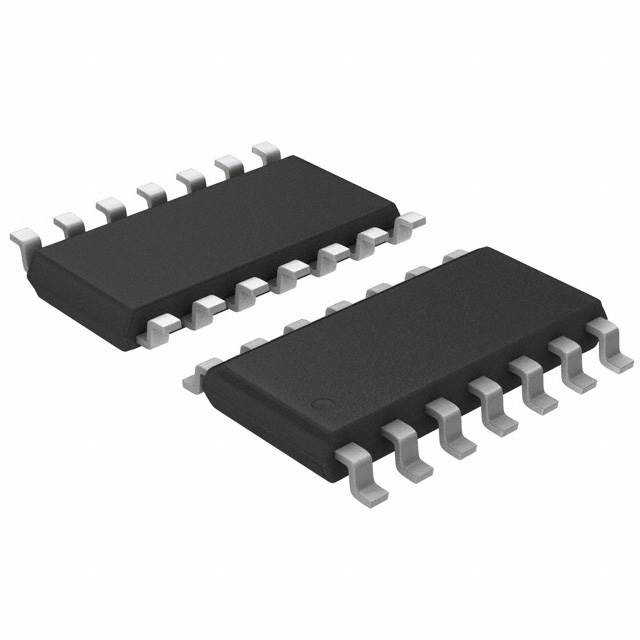

LM339AD

LM339AD

Part Number	LM339AD
Manufacturer	STMicroelectronics
Other Part Numbers	497-18636-ND 497-18636 LM339ADST-ND 1026-LM339AD LM339ADST
Description	IC COMPARATOR 4 GEN PUR 14SO
Detailed Description	Comparator General Purpose CMOS, DTL, ECL, MOS, Open-Collector, TTL 14-SO
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Linear Comparators
Manufacturer		STMicroelectronics
Series
Packaging		Tube
Part Status		Active
Package / Case		14-SOIC (0.154", 3.90mm Width)
Output Type		CMOS, DTL, ECL, MOS, Open-Collector, TTL
Mounting Type		Surface Mount
Number of Elements		4
Type		General Purpose
Operating Temperature		0°C ~ 70°C
Voltage - Supply, Single/Dual (±)		2V ~ 32V, ±1V ~ 16V
Supplier Device Package		14-SO
Current - Quiescent (Max)		2.5mA
Voltage - Input Offset (Max)		2mV @ 30V
Current - Input Bias (Max)		0.1µA @ 5V
Current - Output (Typ)		16mA @ 5V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		LM339AD

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 999

Can ship immediately.
