LM385BZ-2.5G

LM385BZ-2.5G

Part Number	LM385BZ-2.5G
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	LM385BZ-2.5GOS-ND LM385BZ-2.5GOS 2156-LM385BZ-2.5G-OS ONSLM385BZ-2-5G =LM385BZ LM385BZ25G
Description	IC VREF SHUNT 1.5% TO92-3
Detailed Description	Shunt Voltage Reference IC Fixed 2.5V V ±1.5% 20 mA TO-92 (TO-226)
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Reference
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Tube
Part Status		Last Time Buy
Tolerance		±1.5%

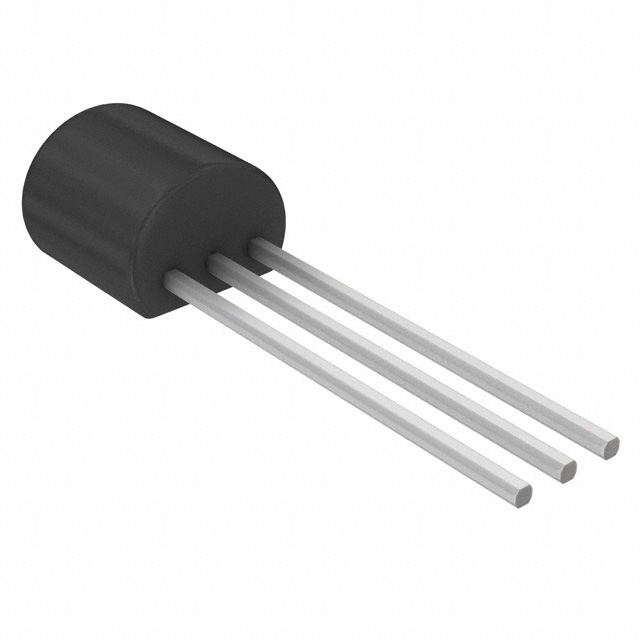

Package / Case		TO-226-3, TO-92-3 Long Body
Temperature Coefficient		80ppm/°C Typical
Output Type		Fixed
Mounting Type		Through Hole
Reference Type		Shunt
Operating Temperature		0°C ~ 70°C (TA)
Supplier Device Package		TO-92 (TO-226)
Voltage - Output (Min/Fixed)		2.5V
Noise - 10Hz to 10kHz		120µVrms
Current - Cathode		30 µA
Current - Output		20 mA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		LM385BZ-2.5G
Datasheets		onsemi RoHS
Datasheets		onsemi REACH
Datasheets		T092 Device DataSheet Update 3/Oct/2016
Datasheets		LMx85/LP2950/MC79L 10/Mar/2022

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1839

Can ship immediately.
