LM57CISD-10/NOPB

LM57CISD-10/NOPB

Part Number	LM57CISD-10/NOPB
Manufacturer	National Semiconductor
Other Part Numbers	2156-LM57CISD-10/NOPB-ND 2156-LM57CISD-10/NOPB NATNSCLM57CISD-10/NOPB
Description	LM57 - TEMPERATURE SENSOR WITH R
Detailed Description	Thermostat Programmable Active High, Active Low Open Drain, Push-Pull 8-WSON (2.5x2.5)

Product Attributes

Category		Sensors, Transducers Temperature Sensors Thermostats - Solid State
Manufacturer		National Semiconductor
Series
Packaging		Bulk
Part Status		Active
Features		Selectable Trip Point, Trip Test

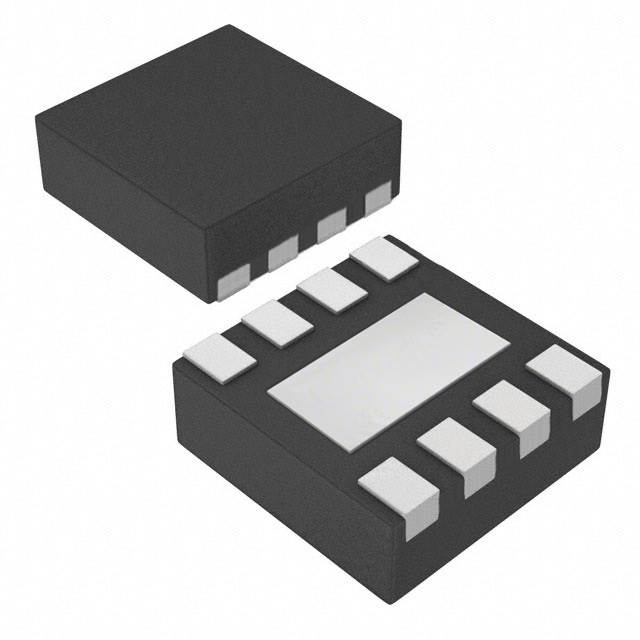

Package / Case		8-WFDFN Exposed Pad
Output Type		Open Drain, Push-Pull
Mounting Type		Surface Mount
Output		Active High, Active Low
Accuracy		±2.3°C
Operating Temperature		-50°C ~ 150°C
Current - Supply		24µA
Switching Temperature		Programmable
Supplier Device Package		8-WSON (2.5x2.5)
Output Function		OverTemp, /OverTemp
Trip Temperature Threshold		Hot
Selectable Hysteresis		Yes
Voltage - Supply		2.4 V ~ 5.5 V

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
