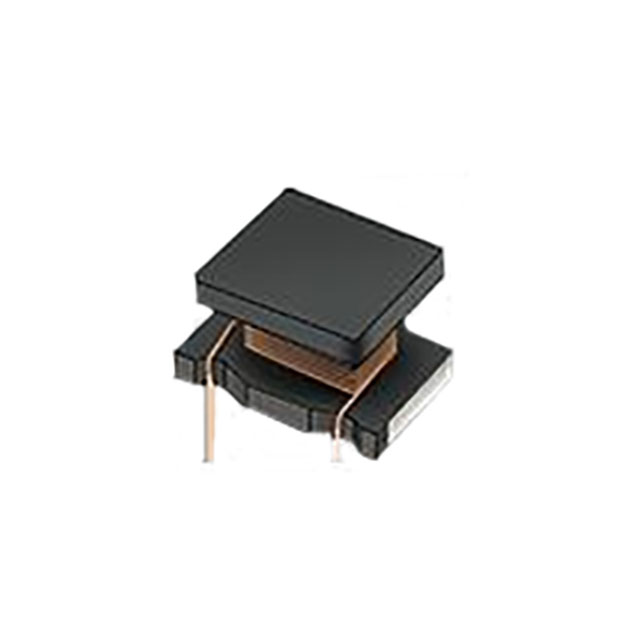

LQH32CH1R0M33L

Part Number
LQH32CH1R0M33L
Manufacturer TOKO / Murata
Other Part Numbers
LQH32CH1R0M33L-ND
Description FIXED IND 1UH 1A 60 MOHM SMD
Detailed Description 1 µH Unshielded Drum Core, Wirewound Inductor 1 A 60mOhm Nonstandard
Datasheet Datasheet

Product Attributes

Category
Manufacturer TOKO / Murata
Series
LQH32
Packaging
Tape & Reel (TR)
Part Status Discontinued
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 85°C
DC Resistance (DCR) 60mOhm
Frequency - Self Resonant 100MHz
Material - Core Ferrite
Inductance Frequency - Test 1 MHz
Supplier Device Package 1210 (3225 Metric)
Height - Seated (Max) 0.087" (2.20mm)
Inductance 1 µH
Current Rating (Amps) 1 A

Documents & Media

RESOURCE TYPE LINK
Datasheets LQH32CH1R0M33L

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Discontinued

This product is no longer for sale.
