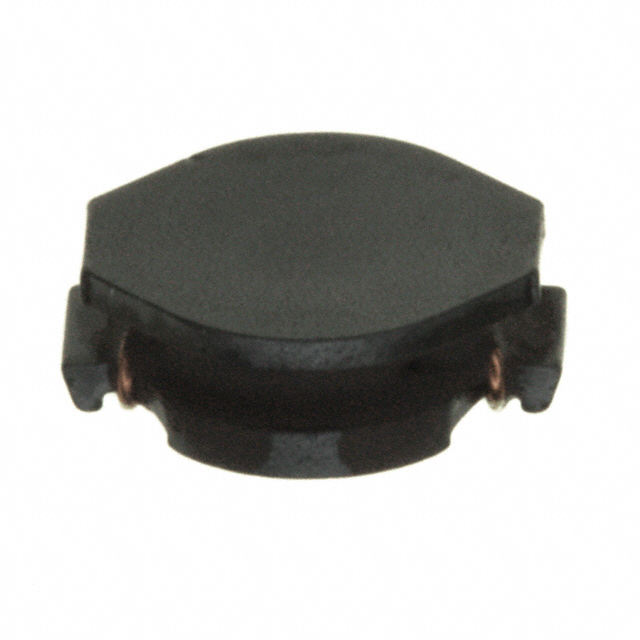

LQH55PN100MR0L

Part Number
LQH55PN100MR0L
Manufacturer TOKO / Murata
Other Part Numbers
490-5271-1-ND
490-5271-6-ND
490-5271-6
490-5271-2
490-5271-1
Description FIXED IND 10UH 1.25A 110 MOHM
Detailed Description 10 µH Shielded Wirewound Inductor 1.25 A 110mOhm 2220 (5750 Metric)

Product Attributes

Category
Manufacturer TOKO / Murata
Series
LQH55
Packaging
Cut Tape (CT)
Part Status Obsolete
Tolerance ±20%
Package / Case 2220 (5750 Metric)
Size / Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Mounting Type Surface Mount
Shielding Shielded
Type Wirewound
Operating Temperature -40°C ~ 85°C
DC Resistance (DCR) 110mOhm
Frequency - Self Resonant 20MHz
Current - Saturation (Isat) 1A
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.197" (5.00mm)
Inductance 10 µH
Current Rating (Amps) 1.25 A

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
