LQW18AS3N3G0CD

LQW18AS3N3G0CD

Part Number
LQW18AS3N3G0CD
Manufacturer TOKO / Murata
Other Part Numbers
490-LQW18AS3N3G0CDTR-ND
490-LQW18AS3N3G0CDTR
Description FIXED IND 3.3NH 700MA 0.045OHM

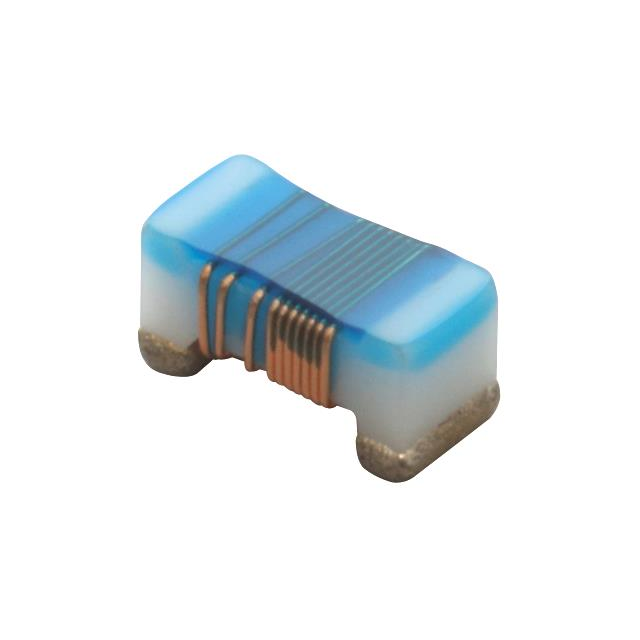

Detailed Description 3.3 nH Unshielded Wirewound Inductor 700 mA 45mOhm Max 0603 (1608 Metric)
Manufacturer Standard Lead Time 15 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer TOKO / Murata
Series
LQW15
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±2%
Package / Case 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Wirewound
Operating Temperature -40°C ~ 85°C
DC Resistance (DCR) 45mOhm Max
Q @ Freq 35 @ 250MHz
Frequency - Self Resonant 5.9GHz
Material - Core Non-Magnetic
Inductance Frequency - Test 250 MHz
Supplier Device Package 0603
Height - Seated (Max) 0.039" (1.00mm)
Inductance 3.3 nH
Current Rating (Amps) 700 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets LQW18AS3N3G0CD

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

Tape & Reel (TR)

QUANTITY UNIT PRICE EXT PRICE
4,000 $0.19 $760.00
