LS8297CT

Part Number
LS8297CT
Manufacturer LSI/CSI
Other Part Numbers
2808-LS8297CT-ND
2808-LS8297CT
Description STEPPER MOTOR CONTROLLER
Detailed Description Bipolar, Unipolar Motor Driver Power MOSFET PWM 20-DIP
Datasheet Datasheet

Product Attributes

Category
Manufacturer LSI/CSI
Series
Packaging
Tube
Part Status Active

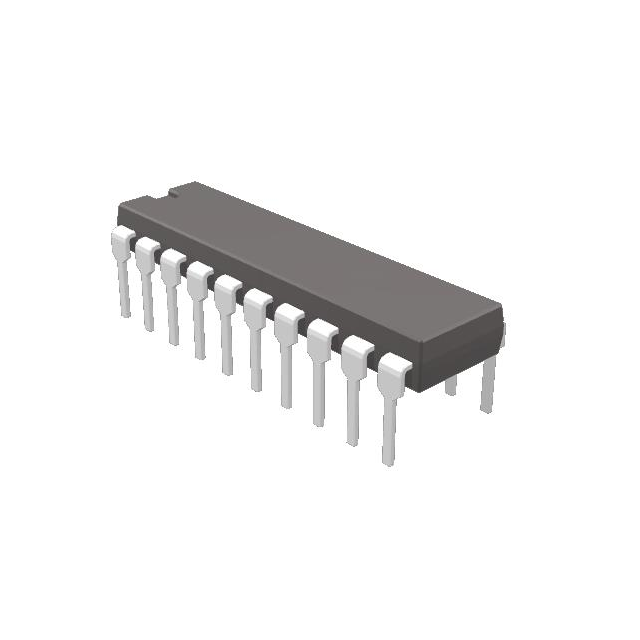

Package / Case 20-DIP (0.300", 7.62mm)
Mounting Type Through Hole
Function Controller - Commutation, Direction Management
Interface PWM
Operating Temperature -40°C ~ 150°C (TJ)
Output Configuration Half Bridge (2)
Voltage - Supply 4.75V ~ 7V
Applications General Purpose
Technology Power MOSFET
Supplier Device Package 20-DIP
Motor Type - Stepper Bipolar, Unipolar
Step Resolution 1, 1/2

Documents & Media

RESOURCE TYPE LINK
Datasheets LS8297CT

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0000
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
