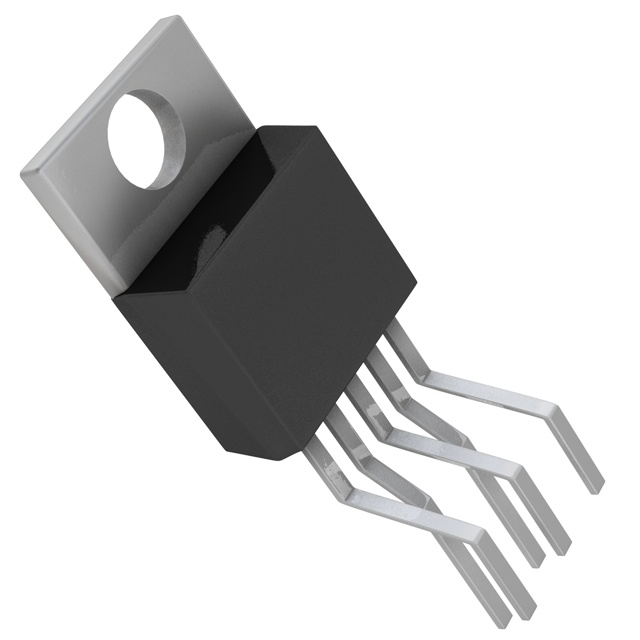

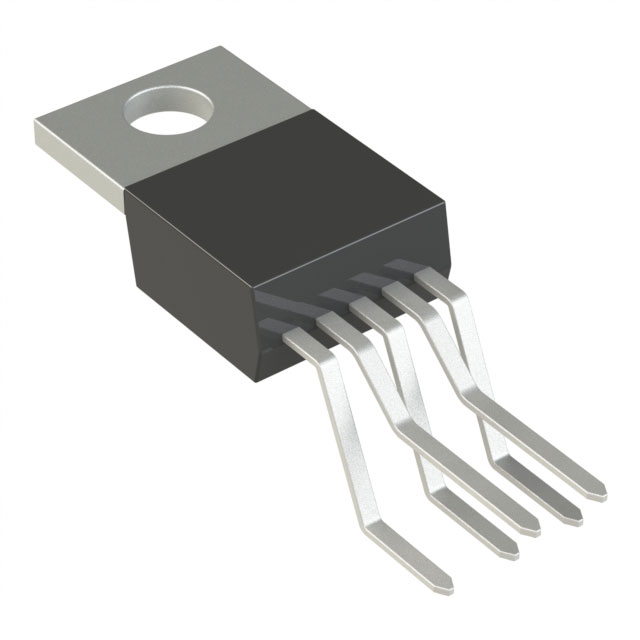

LT1071CT#PBF

LT1071CT#PBF

Part Number
LT1071CT#PBF
Manufacturer Linear Technology (Analog Devices, Inc.)
Other Part Numbers
LT1071CT#PBF-ND
-2735-LT1071CT#PBF
LT1071CTPBF
Description IC REG MULTI CONFG ADJ TO220-5
Detailed Description Buck, Boost, Cuk, Flyback, Forward Converter Switching Regulator IC Positive or Negative Adjustable 1.25V 1 Output 2.5A (Switch) TO-220-5
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Linear Technology (Analog Devices, Inc.)
Series
Packaging
Tube
Part Status Active
Package / Case TO-220-5
Output Type Adjustable
Mounting Type Through Hole
Number of Outputs 1
Function Step-Up, Step-Down, Step-Up/Step-Down
Current - Output 2.5A (Switch)
Operating Temperature 0°C ~ 100°C (TJ)
Output Configuration Positive or Negative
Frequency - Switching 40kHz
Voltage - Input (Max) 60V
Topology Buck, Boost, Cuk, Flyback, Forward Converter
Supplier Device Package TO-220-5
Synchronous Rectifier No
Voltage - Output (Max) 65V (Switch)
Voltage - Input (Min) 3V
Voltage - Output (Min/Fixed) 1.25V

Documents & Media

RESOURCE TYPE LINK
Datasheets LT1071CT#PBF
Datasheets Material Declaration LT1071CT#PBF
Datasheets Multiple Parts 10/Aug/2022

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 352
