LT1170CT#PBF _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	LT1170CT#PBF
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	LT1170CT#PBF-ND LT1170CTPBF -2735-LT1170CT#PBF
Description	IC REG MULT CONFIG ADJ 5A TO220
Detailed Description	Buck, Boost, Cuk, Flyback, Forward Converter Switching Regulator IC Positive or Negative Adjustable 1.244V 1 Output 5A (Switch) TO-220-5
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tube
Part Status		Active

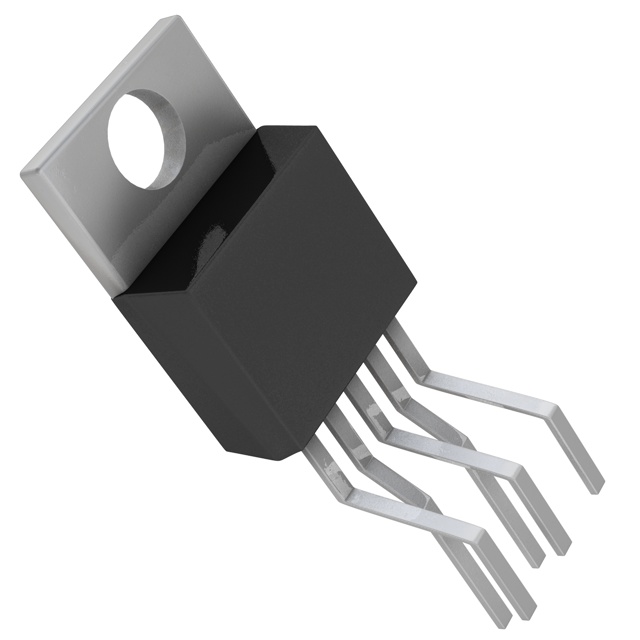

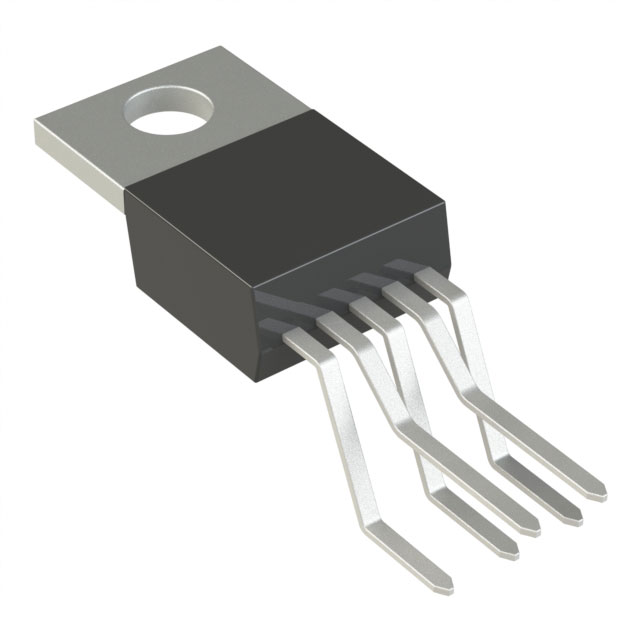

Package / Case		TO-220-5
Output Type		Adjustable
Mounting Type		Through Hole
Number of Outputs		1
Function		Step-Up, Step-Down, Step-Up/Step-Down
Current - Output		5A (Switch)
Operating Temperature		0°C ~ 100°C (TJ)
Output Configuration		Positive or Negative
Frequency - Switching		100kHz
Voltage - Input (Max)		40V
Topology		Buck, Boost, Cuk, Flyback, Forward Converter
Supplier Device Package		TO-220-5
Synchronous Rectifier		No
Voltage - Output (Max)		65V (Switch)
Voltage - Input (Min)		3V
Voltage - Output (Min/Fixed)		1.244V

RESOURCE TYPE		LINK
Datasheets		LT1170CT#PBF
Datasheets		Material Declaration LT1170CT#PBF
Datasheets		TO-220-5(Straight) Flow 06 Pkg Drawing
Datasheets		TO-220-5 Flow 31 Pkg Drawing
Datasheets		TO-220-5 Flow 30 Pkg Drawing

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
