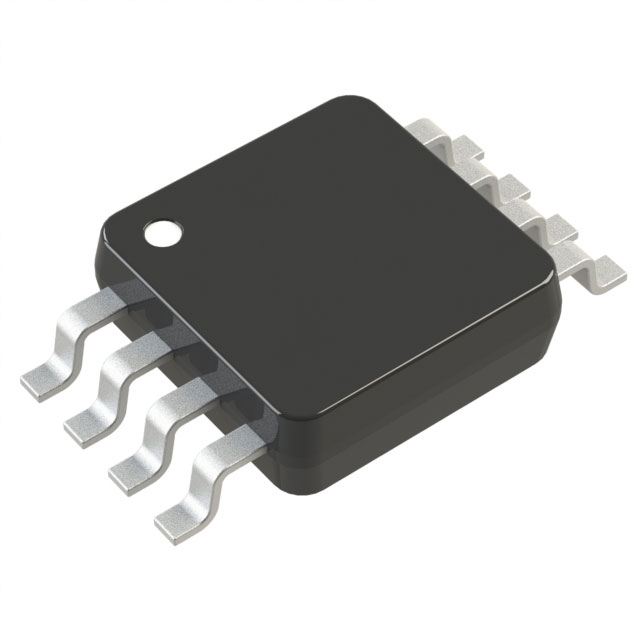

LT1317CMS8#PBF

LT1317CMS8#PBF

Part Number
LT1317CMS8#PBF
Manufacturer Linear Technology (Analog Devices, Inc.)
Other Part Numbers
LT1317CMS8#PBF-ND
LT1317CMS8PBF
-2735-LT1317CMS8#PBF
Description IC REG BST SEPIC ADJ 710MA 8MSOP
Detailed Description Boost, SEPIC Switching Regulator IC Positive Adjustable 1.24V 1 Output 710mA (Switch) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Linear Technology (Analog Devices, Inc.)
Series
Packaging
Tube
Part Status Active
Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Output Type Adjustable
Mounting Type Surface Mount
Number of Outputs 1
Function Step-Up, Step-Up/Step-Down
Current - Output 710mA (Switch)
Operating Temperature 0°C ~ 70°C (TA)
Output Configuration Positive
Frequency - Switching 620kHz
Voltage - Input (Max) 12V
Topology Boost, SEPIC
Supplier Device Package 8-MSOP
Synchronous Rectifier No
Voltage - Output (Max) 30V (Switch)
Voltage - Input (Min) 1.5V
Voltage - Output (Min/Fixed) 1.24V

Documents & Media

RESOURCE TYPE LINK
Datasheets LT1317CMS8#PBF
Datasheets Material Declaration LT1317CMS8#PBF
Datasheets Mult Dev Mark Chg 3/Feb/2020

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 408

Can ship immediately.
