LT1946EMS8E#PBF

LT1946EMS8E#PBF

Part Number
LT1946EMS8E#PBF
Manufacturer Linear Technology (Analog Devices, Inc.)
Other Part Numbers
LT1946EMS8E#PBF-ND
-2735-LT1946EMS8E#PBF
2156-LT1946EMS8E#PBF
Description IC REG BOOST ADJ 1.5A 8MSOP
Detailed Description Boost Switching Regulator IC Positive Adjustable 2.45V 1 Output 1.5A (Switch) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Linear Technology (Analog Devices, Inc.)
Series
Packaging
Tube
Part Status Active

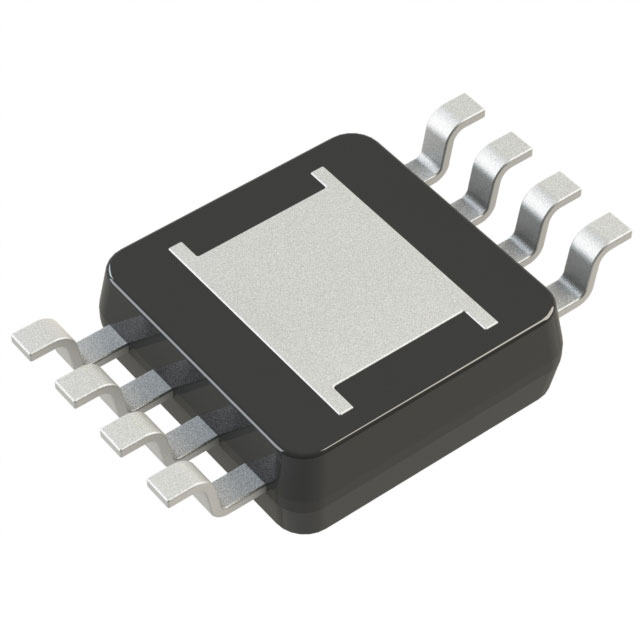

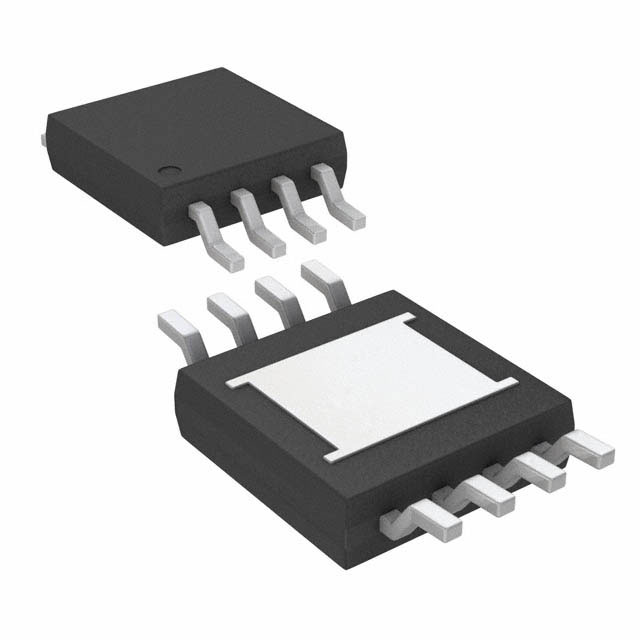

Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Output Type Adjustable
Mounting Type Surface Mount
Number of Outputs 1
Function Step-Up
Current - Output 1.5A (Switch)
Operating Temperature 0°C ~ 70°C (TA)
Output Configuration Positive
Frequency - Switching 1.2MHz
Voltage - Input (Max) 16V
Topology Boost
Supplier Device Package 8-MSOP-EP
Synchronous Rectifier No
Voltage - Output (Max) 34V
Voltage - Input (Min) 2.45V
Voltage - Output (Min/Fixed) 2.45V

Documents & Media

RESOURCE TYPE LINK
Datasheets LT1946EMS8E#PBF
Datasheets Material Declaration LT1946EMS8E#PBF
Datasheets Mult Dev Mark Chg 3/Feb/2020

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 247

Can ship immediately.
