LT5568-2EUF#PBF

LT5568-2EUF#PBF

Part Number	LT5568-2EUF#PBF
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	505-LT5568-2EUF#PBF-ND LT5568-2EUF#PBF-ND 505-LT5568-2EUF#PBF 2266-LT5568-2EUF#PBF -2735-LT5568-2EUF#PBF
Description	RF MODULATR 700MHZ-1.05GHZ 16QFN
Detailed Description	RF Modulator IC 700MHz ~ 1.05GHz 16-WQFN Exposed Pad
Manufacturer Standard Lead Time	39 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Modulators
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tube
Part Status		Active

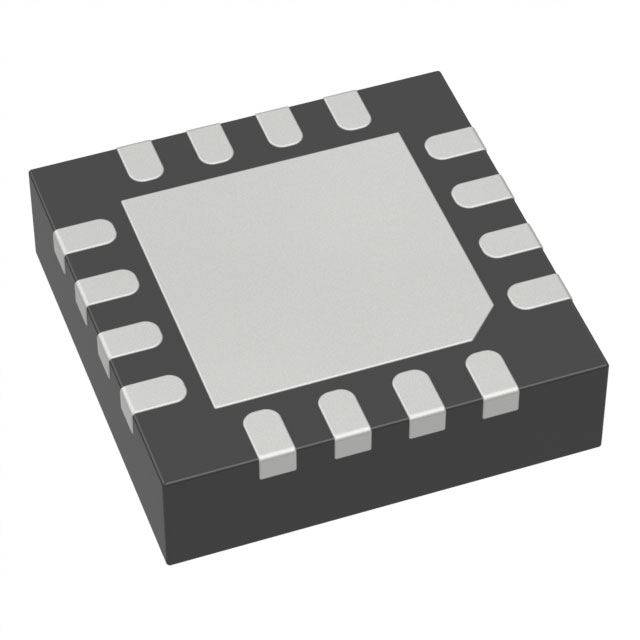

Package / Case		16-WQFN Exposed Pad
Mounting Type		Surface Mount
Function		Modulator
Voltage - Supply		4.5V ~ 5.25V
P1dB		8.3dBm
Test Frequency		850MHz
LO Frequency		550MHz ~ 1.25GHz
RF Frequency		700MHz ~ 1.05GHz
Output Power		-2.8dBm
Noise Floor		-160.3dBm/Hz
Supplier Device Package		16-QFN (4x4)
Current - Supply		165 mA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		LT5568-2EUF#PBF
Datasheets		Material Declaration LT5568-2EUF#PBF

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 8

Can ship immediately.
