LTC1046CS8#PBF _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	LTC1046CS8#PBF
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	LTC1046CS8#PBF-ND LTC1046CS8PBF -2735-LTC1046CS8#PBF
Description	IC REG CHARGE PUMP INV 50MA 8SO
Detailed Description	Charge Pump Switching Regulator IC Positive or Negative Fixed -Vin, 2Vin, Vin/2 1 Output 50mA 8-SOIC (0.154", 3.90mm Width)
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tube
Part Status		Active

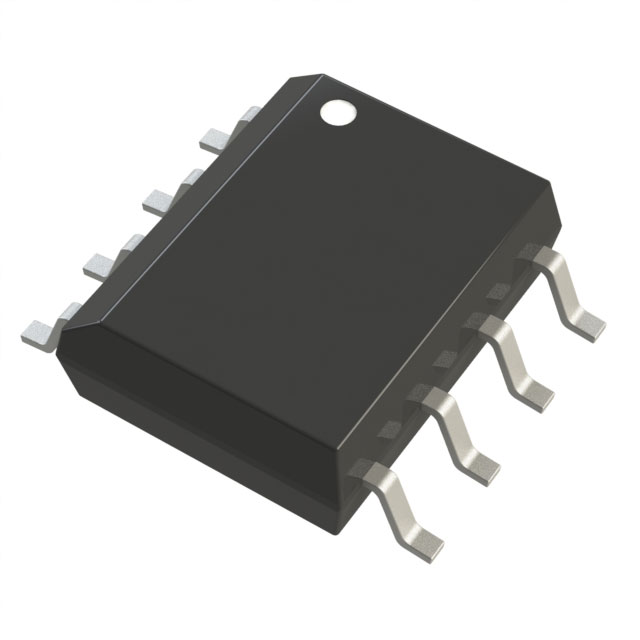

Package / Case		8-SOIC (0.154", 3.90mm Width)
Output Type		Fixed
Mounting Type		Surface Mount
Number of Outputs		1
Function		Ratiometric
Current - Output		50mA
Operating Temperature		0°C ~ 70°C (TA)
Output Configuration		Positive or Negative
Frequency - Switching		5.5kHz ~ 30kHz
Voltage - Input (Max)		6V
Topology		Charge Pump
Supplier Device Package		8-SO
Synchronous Rectifier		No
Voltage - Input (Min)		1.5V
Voltage - Output (Min/Fixed)		-Vin, 2Vin, Vin/2

RESOURCE TYPE		LINK
Datasheets		LTC1046CS8#PBF
Datasheets		Material Declaration LTC1046CS8#PBF

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
