LTC1261CS#PBF _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	LTC1261CS#PBF
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	LTC1261CS#PBF-ND LTC1261CSPBF -2735-LTC1261CS#PBF
Description	IC REG CHARGE PUMP ADJ 12MA 14SO
Detailed Description	Charge Pump Switching Regulator IC Negative Adjustable -1.25V 1 Output 12mA 14-SOIC (0.154", 3.90mm Width)
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tube
Part Status		Active

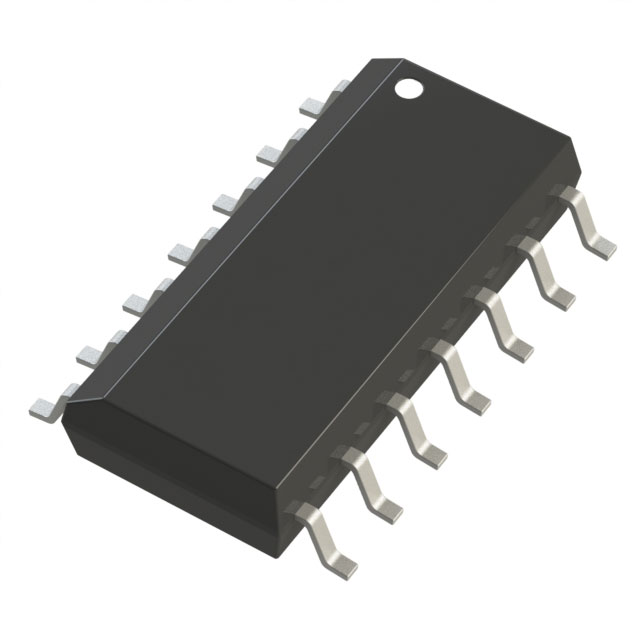

Package / Case		14-SOIC (0.154", 3.90mm Width)
Output Type		Adjustable
Mounting Type		Surface Mount
Number of Outputs		1
Function		Step-Up/Step-Down
Current - Output		12mA
Operating Temperature		0°C ~ 70°C (TA)
Output Configuration		Negative
Frequency - Switching		550kHz
Voltage - Input (Max)		8V
Topology		Charge Pump
Supplier Device Package		14-SO
Synchronous Rectifier		No
Voltage - Output (Max)		-8V
Voltage - Input (Min)		3V
Voltage - Output (Min/Fixed)		-1.25V

RESOURCE TYPE		LINK
Datasheets		LTC1261CS#PBF
Datasheets		Material Declaration LTC1261CS#PBF
Datasheets		Mult Dev 12/Oct/2022

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
{{ p.name }}	{{ numberFormat(p.buyQty) }}	{{ priceFormat(p.unitPrice) }}	{{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

QUANTITY	UNIT PRICE	EXT PRICE
{{ numberFormat(price.break_quantity) }}	{{ priceFormat(price.unit_price) }}	{{ priceFormat(price.break_quantity * price.unit_price) }}

Detailed pricing is currently unavailable.

Detailed packaging information is temporarily unavailable.
