LTC1504CS8-3.3#PBF _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	LTC1504CS8-3.3#PBF
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	LTC1504CS8-3.3#PBF-ND -2735-LTC1504CS8-3.3#PBF 2156-LTC1504CS8-3.3#PBF
Description	IC REG BUCK 3.3V 500MA 8SO
Detailed Description	Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 500mA 8-SOIC (0.154", 3.90mm Width)
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tube
Part Status		Active

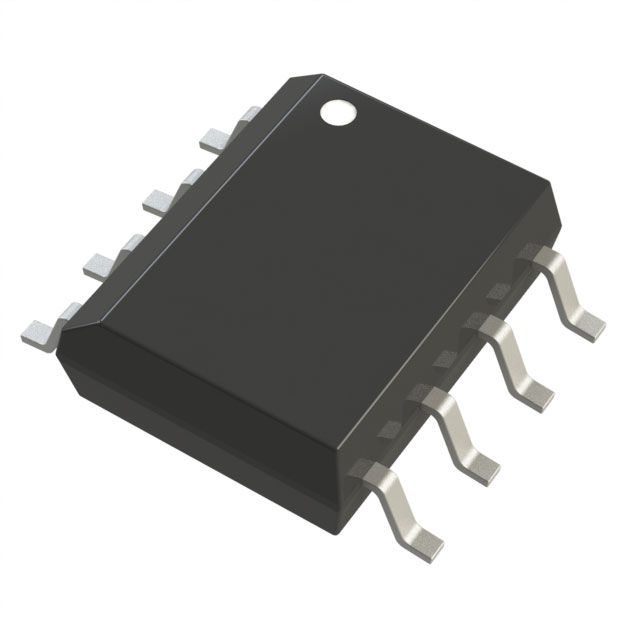

Package / Case		8-SOIC (0.154", 3.90mm Width)
Output Type		Fixed
Mounting Type		Surface Mount
Number of Outputs		1
Function		Step-Down
Current - Output		500mA
Operating Temperature		0°C ~ 70°C (TA)
Output Configuration		Positive
Frequency - Switching		200kHz
Voltage - Input (Max)		10V
Topology		Buck
Supplier Device Package		8-SO
Synchronous Rectifier		Yes
Voltage - Input (Min)		4V
Voltage - Output (Min/Fixed)		3.3V

RESOURCE TYPE		LINK
Datasheets		LTC1504CS8-3.3#PBF
Datasheets		Material Declaration LTC1504CS8-3.3#PBF
Datasheets		SOIC-8 parts EPOXY 14/Dec/2023

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
