LTC1682CMS8-5#PBF _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	LTC1682CMS8-5#PBF
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	LTC1682CMS8-5#PBF-ND -2735-LTC1682CMS8-5#PBF
Description	IC REG CHARGE PUMP 5V 50MA 8MSOP
Detailed Description	Charge Pump Switching Regulator IC Positive Fixed 5V 1 Output 50mA 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tube
Part Status		Active

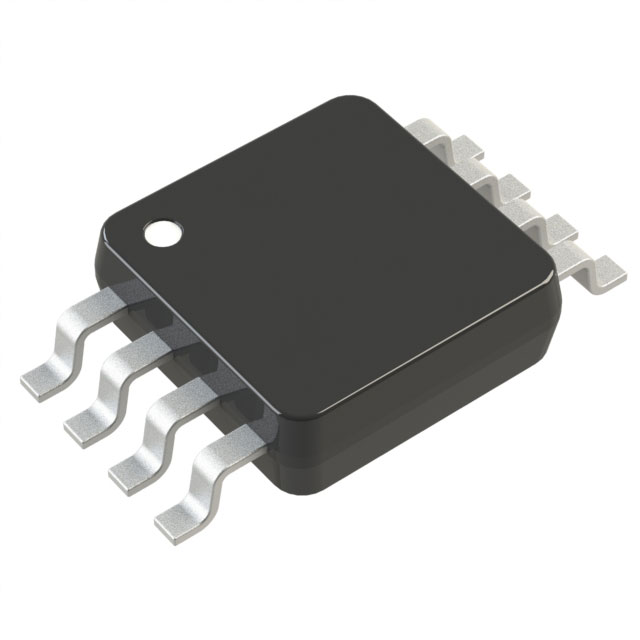

Package / Case		8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Output Type		Fixed
Mounting Type		Surface Mount
Number of Outputs		1
Function		Step-Up
Current - Output		50mA
Operating Temperature		0°C ~ 70°C (TA)
Output Configuration		Positive
Frequency - Switching		550kHz
Voltage - Input (Max)		4.4V
Topology		Charge Pump
Supplier Device Package		8-MSOP
Synchronous Rectifier		No
Voltage - Input (Min)		1.8V
Voltage - Output (Min/Fixed)		5V

RESOURCE TYPE		LINK
Datasheets		LTC1682CMS8-5#PBF
Datasheets		Material Declaration LTC1682CMS8-5#PBF
Datasheets		Mult Dev Mark Chg 3/Feb/2020

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
