LTC203CN#PBF _ Analog Switches, Multiplexers, Demultiplexers_Interface_Integrated Circuits (ICs)

Part Number	LTC203CN#PBF
Manufacturer	Linear Technology
Other Part Numbers	2156-LTC203CN#PBF-ND 2156-LTC203CN#PBF ANALINLTC203CN#PBF
Description	MICROPOWER, LOW CHARGE INJECTION
Detailed Description	4 Circuit IC Switch 1:1 125Ohm 16-PDIP

Category		Integrated Circuits (ICs) Interface Analog Switches, Multiplexers, Demultiplexers
Manufacturer		Linear Technology
Series
Packaging		Bulk
Part Status		Active

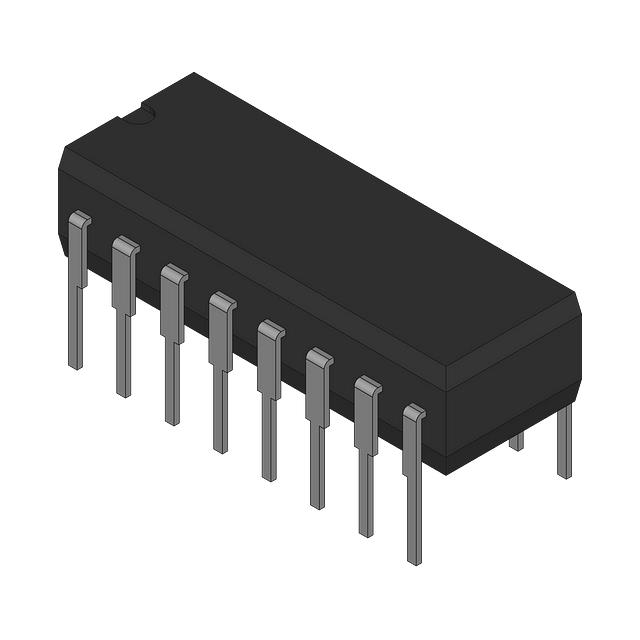

Package / Case		16-DIP (0.300", 7.62mm)
Mounting Type		Through Hole
Operating Temperature		0°C ~ 70°C (TA)
On-State Resistance (Max)		125Ohm
Supplier Device Package		16-PDIP
Voltage - Supply, Single (V+)		5V
Voltage - Supply, Dual (V±)		±15V
Charge Injection		8pC
Crosstalk		-90dB @ 100kHz
Switch Circuit		SPST - NO/NC
Multiplexer/Demultiplexer Circuit		1:1
Channel-to-Channel Matching (ΔRon)		6.25Ohm
Switch Time (Ton, Toff) (Max)		400ns, 300ns
Channel Capacitance (CS(off), CD(off))		5pF, 12pF
Current - Leakage (IS(off)) (Max)		5nA
Number of Circuits		4
