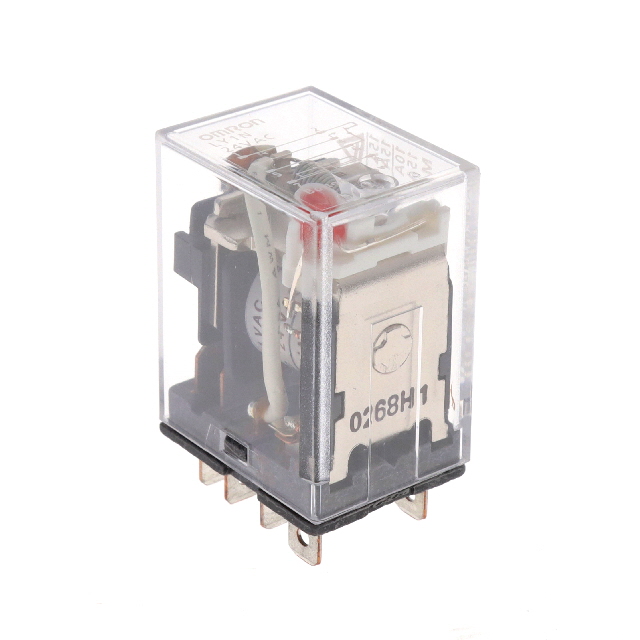

LY1N-AC24 _ Power Relays, Over 2 Amps_Relays

Part Number	LY1N-AC24
Manufacturer	Omron Automation
Other Part Numbers	Z11219-ND LY1N-AC24-ND LY1NAC24 Z11219
Description	RELAY GEN PURPOSE SPDT 15A 24V
Detailed Description	General Purpose Relay SPDT (1 Form C) 24VAC Coil Socketable
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Category		Relays Power Relays, Over 2 Amps
Manufacturer		Omron Automation
Series		LY
Packaging		Bulk
Part Status		Active
Features		Lighted Indicator
Mounting Type		Socketable
Coil Voltage		24VAC
Operating Temperature		-25°C ~ 55°C
Termination Style		Plug In
Approval Agency		CE, CSA, TUV, UR
Relay Type		General Purpose
Coil Current		46 mA
Coil Type		Non Latching
Contact Material		Silver Alloy
Contact Form		SPDT (1 Form C)
Contact Rating (Current)		15 A
Switching Voltage		250VAC, 125VDC - Max
Must Release Voltage		7.2 VAC
Must Operate Voltage		19.2 VAC
Operate Time		25 ms
Release Time		25 ms
Coil Resistance		180 Ohms
Load - Max Switching		3750VA, 1875W

RESOURCE TYPE		LINK
Datasheets		LY1N-AC24
Datasheets		Multiple Devices Nameplate May/2015

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
