Part Number | M05-113H18BK-15 |
---|---|
Manufacturer | Micro Connectors, Inc. |
Other Part Numbers | 2768-M05-113H18BK-15-ND 2768-M05-113H18BK-15 |
Description | HOSPITAL-GRADE POWER CORD, NEMA |

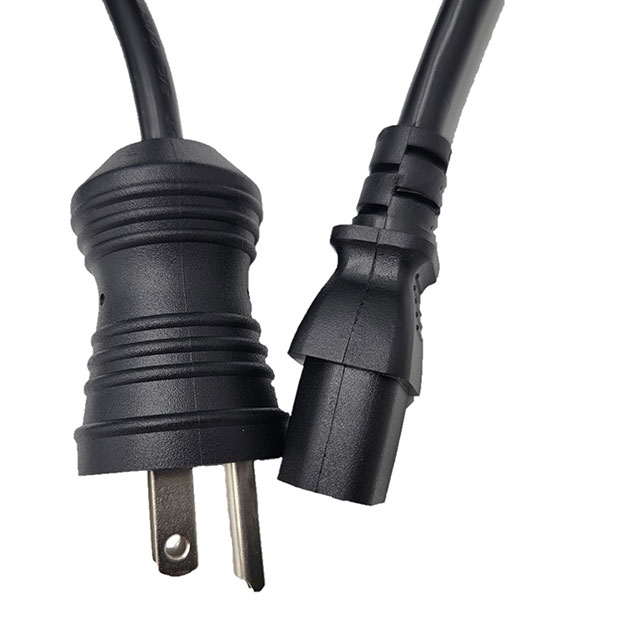

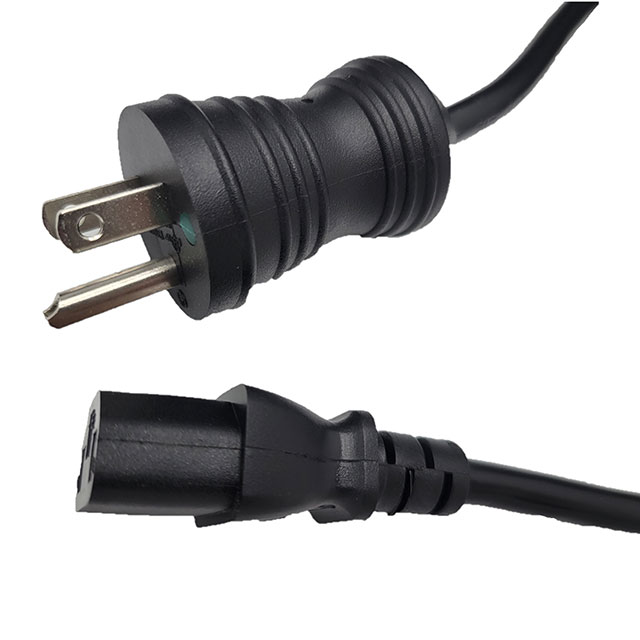

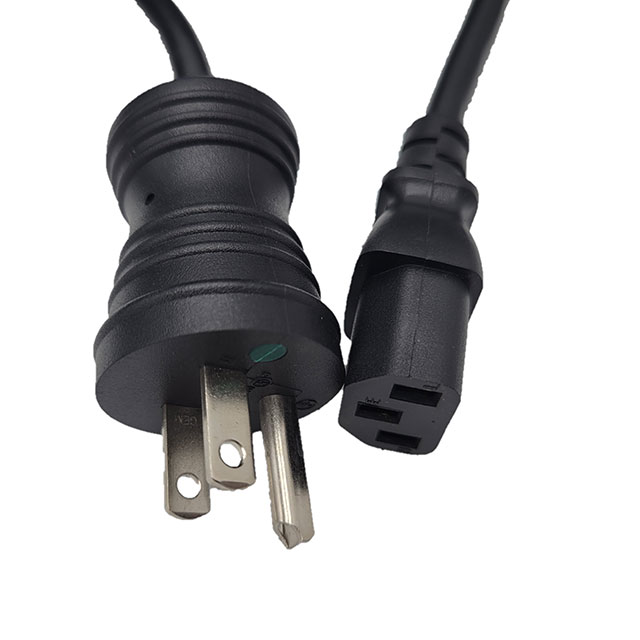

Detailed Description | 15.00' (4.57m) Power Cord Black NEMA 5-15P To IEC 320-C13 SJT |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Micro Connectors, Inc. | |
Series | ||
Packaging | Bag | |
Part Status | Active | |
Color | Black | |
Voltage Rating | 125V | |
Current Rating (Amps) | 10A | |
Length | 15.00' (4.57m) | |
Wire Gauge | 18 AWG | |
Shielding | Unshielded | |
Style | Male Pins (Blades) to Female Sockets (Slots) | |
Number of Conductors | 3 | |
Cord Type | SJT | |
1st Connector | NEMA 5-15P | |
2nd Connector | IEC 320-C13 |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | M05-113H18BK-15 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
HTSUS | 8544.42.2000 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
REACH Status | REACH info available upon request | |
RoHS Status | RoHS Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
1 | $32.99 | $32.99 |
10 | $29.69 | $296.90 |
25 | $28.04 | $701.00 |
50 | $24.74 | $1,237.00 |
