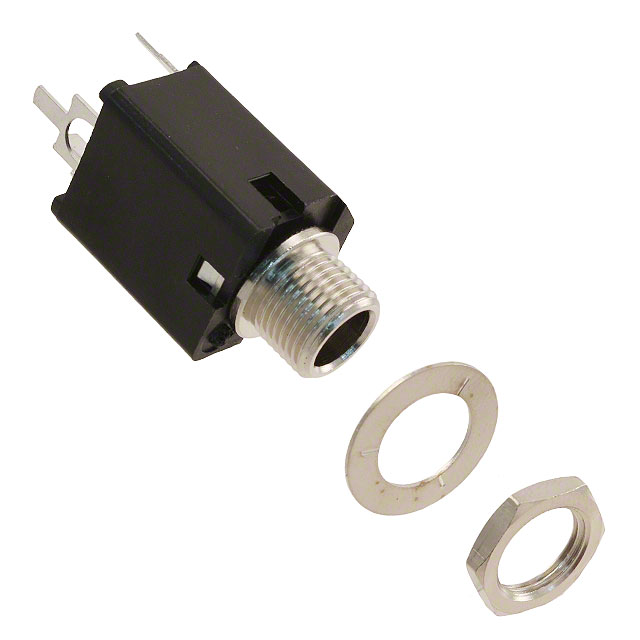

M112BPCX _ Audio Connectors_Barrel Connectors_Connectors, Interconnects

Part Number	M112BPCX
Manufacturer	Switchcraft / Conxall
Other Part Numbers	SC1848-ND SC1848 M112BPCX-ND
Description	CONN JACK STEREO 6.35MM PNL MNT
Detailed Description	6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Barrel Connectors Audio Connectors
Manufacturer		Switchcraft / Conxall
Series		Hi-D JAX® M-11*
Packaging		Bulk
Part Status		Active
Features		Mounting Hardware, Thread Lock
Voltage - Rated		48VDC
Connector Type		Phone Jack
Gender		Female
Mounting Type		Panel Mount, Through Hole
Shielding		Unshielded
Thread Size		3/8"-32
Operating Temperature		-20°C ~ 65°C
Panel Hole Size		0.375" (9.52mm)
Number of Positions/Contacts		3 Conductors, 3 Contacts
Internal Switch(s)		Does Not Contain Switch
Signal Lines		Stereo (3 Conductor, TRS)
Termination		Solder
Includes		3 pcs - 1 Connector, 1 Nut, 1 Washer
Contact Material		Brass
Housing Material		Thermoplastic
Body Material		Brass
Body Color		Silver, Black
Contact Material - Plating		Tin
Actual Diameter		0.250" (6.35mm)
Industry Recognized Mating Diameter		6.35mm (0.250", 1/4") - Headphone
Current Rating (Amps)		250 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4030
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Bulk	1	$4.94	$4.94
Total Amount: $4.94
