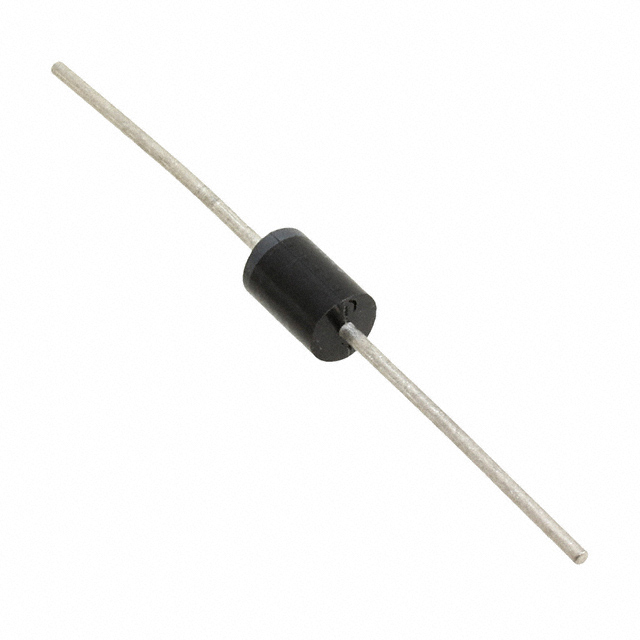

M15KP75A

Part Number
M15KP75A
Manufacturer Roving Networks (Microchip Technology)
Other Part Numbers
1086-3387-ND
1086-3387-MIL
1086-3387
Description TVS DIODE 75VWM 122VC DO204AR
Detailed Description 122V Clamp 123A Ipp Tvs Diode Through Hole DO-204AR
Manufacturer Standard Lead Time 40 weeks

Product Attributes

Category
Manufacturer Roving Networks (Microchip Technology)
Series
Packaging
Bulk
Part Status Active
Package / Case DO-204AR, Axial
Mounting Type Through Hole
Type Zener
Operating Temperature -65°C ~ 150°C (TJ)
Applications General Purpose
Current - Peak Pulse (10/1000µs) 123A
Voltage - Reverse Standoff (Typ) 75V
Supplier Device Package DO-204AR
Unidirectional Channels 1
Voltage - Breakdown (Min) 83.3V
Voltage - Clamping (Max) @ Ipp 122V
Power - Peak Pulse 15000W (15kW)
Power Line Protection No
Grade Military
Qualification MIL-PRF-19500

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant

In Stock: 100

Can ship immediately.
