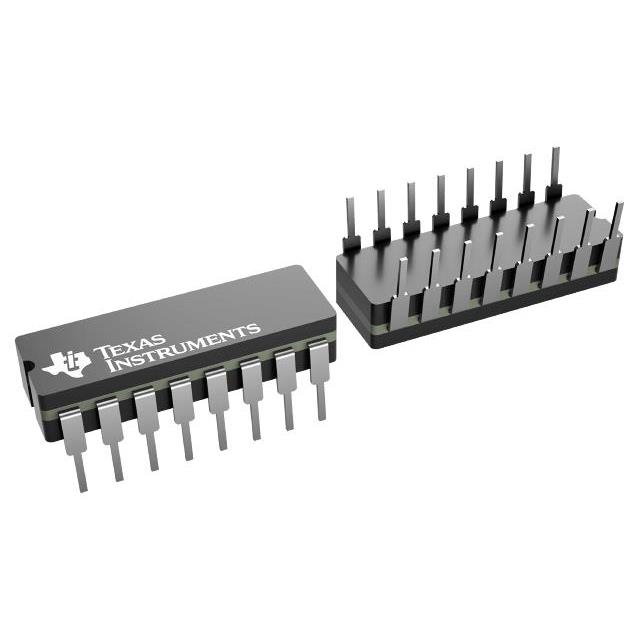

M38510/37103BEA _ Flip Flops_Logic_Integrated Circuits (ICs)

Part Number	M38510/37103BEA
Manufacturer	Texas Instruments
Other Part Numbers	296-M38510/37103BEA-ND 296-M38510/37103BEA
Description	DUAL J-K NEGATIVE-EDGE-TRIGGERED
Detailed Description	Flip Flop 2 Element JK Type 1 Bit Negative Edge 16-CDIP (0.300", 7.62mm)
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Logic Flip Flops
Manufacturer		Texas Instruments
Series		54ALS
Packaging		Tube
Part Status		Active
Package / Case		16-CDIP (0.300", 7.62mm)
Output Type		Complementary
Mounting Type		Through Hole
Number of Elements		2
Function		Set(Preset) and Reset
Type		JK Type
Operating Temperature		-55°C ~ 125°C (TA)
Voltage - Supply		4.5V ~ 5.5V
Current - Quiescent (Iq)		4.5 mA
Current - Output High, Low		400µA, 4mA
Trigger Type		Negative Edge
Clock Frequency		25 MHz
Supplier Device Package		16-CDIP
Max Propagation Delay @ V, Max CL		24ns @ 5V, 50pF
Number of Bits per Element		1
