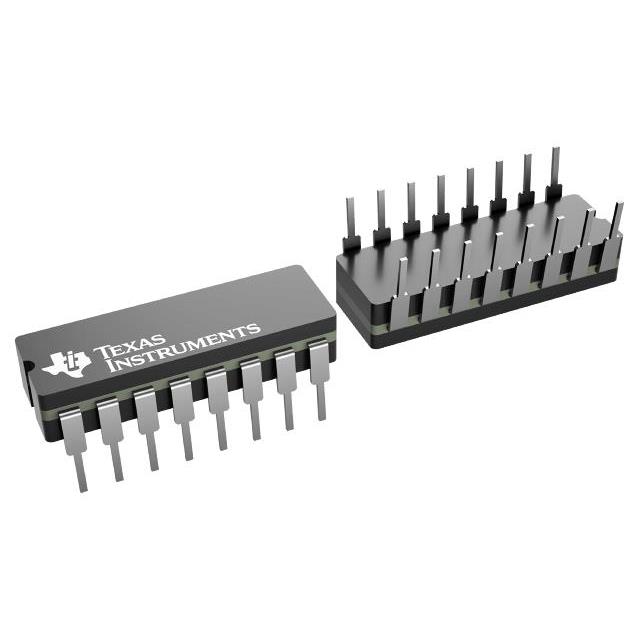

M38510/37202BEA

Part Number
M38510/37202BEA
Manufacturer Texas Instruments
Other Part Numbers
296-M38510/37202BEA-ND
296-M38510/37202BEA
Description QUADRUPLE D-TYPE FLIP-FLOPS WITH
Detailed Description Flip Flop 1 Element D-Type 4 Bit Positive Edge 16-CDIP (0.300", 7.62mm)
Datasheet Datasheet

Product Attributes

Category
Manufacturer Texas Instruments
Series
54ALS
Packaging
Tube
Part Status Active
Package / Case 16-CDIP (0.300", 7.62mm)
Output Type Complementary
Mounting Type Through Hole
Number of Elements 1
Function Master Reset
Type D-Type
Operating Temperature -55°C ~ 125°C (TA)
Voltage - Supply 4.5V ~ 5.5V
Current - Quiescent (Iq) 14 mA
Current - Output High, Low 400µA, 4mA
Trigger Type Positive Edge
Clock Frequency 40 MHz
Supplier Device Package 16-CDIP
Max Propagation Delay @ V, Max CL 24ns @ 5V, 50pF
Number of Bits per Element 4

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order
