M4201 BK199

Part Number
M4201 BK199
Manufacturer Alpha Wire
Other Part Numbers
M4201BK199-ND
M4201 BK199-ND
M4201BK199

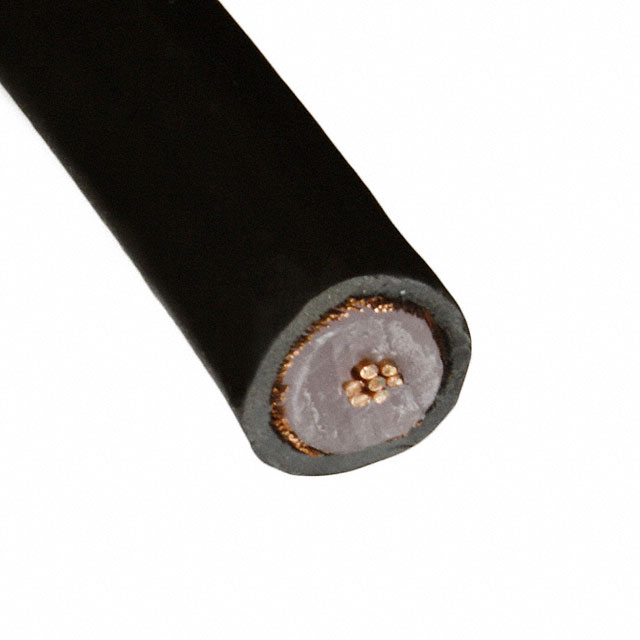

Description RG8A/U COAX 52 OHM 1000 = 1000'
Detailed Description Coaxial Cable 13 AWG RG-8A 1000.0' (304.80m) 52 Ohms
Manufacturer Standard Lead Time 5 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Alpha Wire
Series
Packaging
Spool
Part Status Active
Length 1000.0' (304.80m)
Wire Gauge 13 AWG
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Strand 7 Strands / 21 AWG
Cable Group RG-8A
Operating Temperature -40°C ~ 60°C
Cable Type Coaxial
Jacket (Insulation) Diameter 0.405" (10.29mm)
Dielectric Material Solid Polyethylene (PE)
Shield Coverage 95%
Shield Material Copper, Bare
Shield Type Braid
Conductor Material Copper, Bare
Jacket Color Black
Dielectric Diameter 0.285" (7.24mm)
VoP, Velocity of Propagation 66
Impedance 52 Ohms

Documents & Media

RESOURCE TYPE LINK
Datasheets M4201 BK199
Datasheets Alpha Essentials Cable Catalog
Datasheets Master Catalog

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8544.20.0000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
