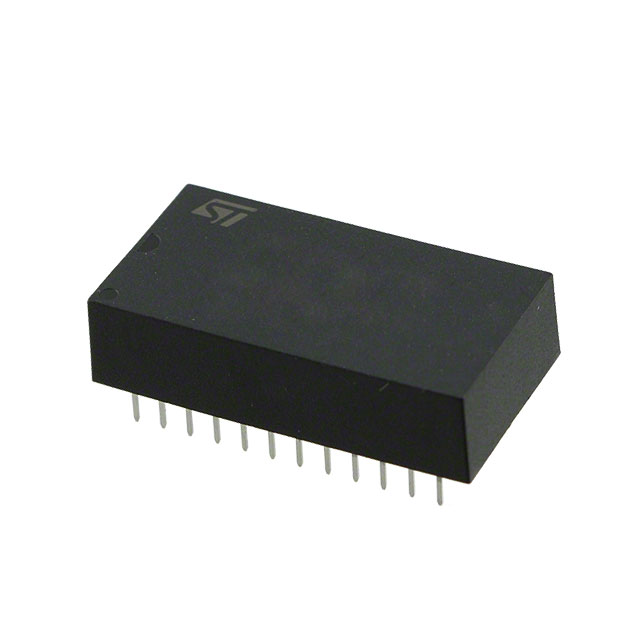

M48Z02-150PC1

M48Z02-150PC1

Part Number	M48Z02-150PC1
Manufacturer	STMicroelectronics
Other Part Numbers	497-2865-5-ND 497-2865-5 497-2865-5-NDR M48Z02150PC1
Description	IC NVSRAM 16KBIT PAR 24PCDIP
Detailed Description	NVSRAM (Non-Volatile SRAM) Memory IC 16Kbit Parallel 150 ns 24-PCDIP, CAPHAT®
Manufacturer Standard Lead Time	24 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Memory Memory
Manufacturer		STMicroelectronics
Series
Packaging		Tube
Part Status		Active
Package / Case		24-DIP Module (0.600", 15.24mm)
Mounting Type		Through Hole
Memory Size		16Kbit
Memory Type		Non-Volatile
Operating Temperature		0°C ~ 70°C (TA)
Voltage - Supply		4.75V ~ 5.5V
Technology		NVSRAM (Non-Volatile SRAM)
Memory Format		NVSRAM
Supplier Device Package		24-PCDIP, CAPHAT®
Write Cycle Time - Word, Page		150ns
Memory Interface		Parallel
Access Time		150 ns
Memory Organization		2K x 8
DigiKey Programmable		Not Verified

Documents & Media

RESOURCE TYPE		LINK
Datasheets		M48Z02-150PC1
Datasheets		Mult Dev Temp BOM Chg 21/Feb/2020
Datasheets		Mult Dev Mold Compound Chg 3/Mar/2020

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.32.0041
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 260

Can ship immediately.
