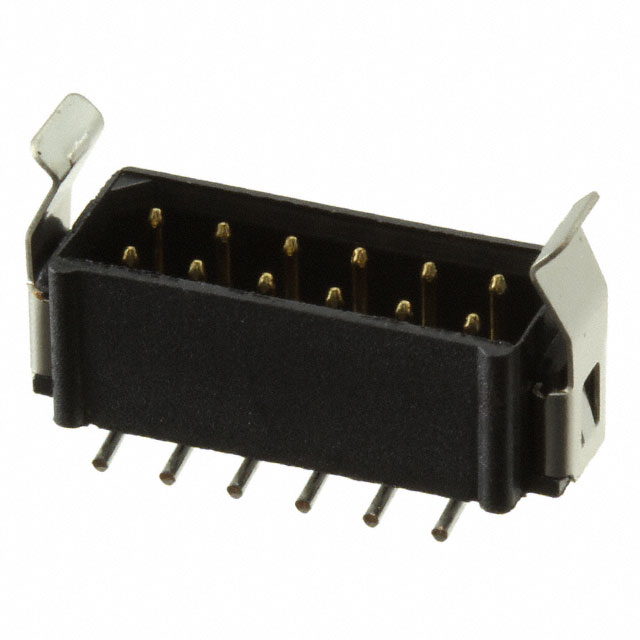

M80-8271242 _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	M80-8271242
Manufacturer	Harwin
Other Part Numbers	952-1175-5-ND M808271242 952-1175-5
Description	CONN HEADER SMD 12POS 2MM
Detailed Description	Connector Header Surface Mount 12 position 0.079" (2.00mm)
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Harwin
Series		Datamate L-Tek
Packaging		Tube
Part Status		Obsolete
Connector Type		Header
Voltage Rating		800V
Current Rating (Amps)		2.2A
Mounting Type		Surface Mount
Number of Positions		12
Number of Rows		2
Style		Board to Board or Cable
Operating Temperature		-55°C ~ 125°C
Contact Type		Male Pin
Fastening Type		Friction Lock
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Mated Stacking Heights		7.85mm, 8.45mm, 10.5mm, 14.25mm
Insulation Color		Black
Pitch - Mating		0.079" (2.00mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		29.5µin (0.75µm)
Contact Finish - Post		Tin
Contact Finish Thickness - Post		118.1µin (3.00µm)
Contact Shape		Circular
Insulation Height		0.205" (5.20mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating		0.079" (2.00mm)

RESOURCE TYPE		LINK
Datasheets		M80-8271242
Datasheets		RoHS Cert M80-8271242
Datasheets		Harwin REACH
Datasheets		Mult Devices EOL 05/Mar/2018
Datasheets		L-Tek SMT Material 19/Dec/2013
Datasheets		M80-827 Drawing
Datasheets		Dual Row Vertical Header Male Pins

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
