M9520010 BK002 _ Multiple Conductor Cables_Cables, Wires

Part Number	M9520010 BK002
Manufacturer	Alpha Wire
Other Part Numbers	M9520010BK002-ND M9520010BK002 M9520010 BK002-ND
Description	CABLE 2COND 20AWG BLK SHLD 500'

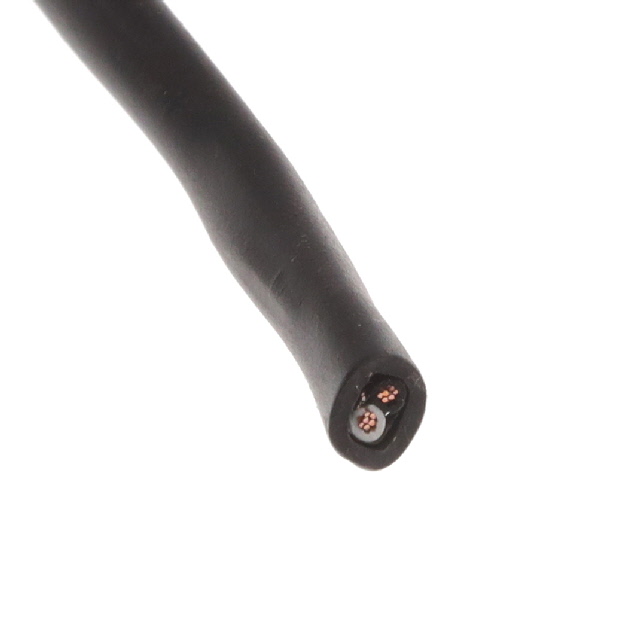

Detailed Description	2 (1 Pair Twisted) Conductor Multi-Conductor Cable Black 20 AWG Foil 500.0' (152.4m)
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Category		Cables, Wires Multiple Conductor Cables
Manufacturer		Alpha Wire
Series
Packaging		Spool
Part Status		Active
Features		Drain Wire, UV Resistant
Length		500.0' (152.4m)
Wire Gauge		20 AWG
Jacket (Insulation) Material		Poly-Vinyl Chloride (PVC)
Conductor Strand		7/0.0121"
Operating Temperature		-20°C ~ 105°C
Number of Conductors		2 (1 Pair Twisted)
Cable Type		Multi-Conductor
Jacket (Insulation) Diameter		0.219" (5.56mm)
Usage		Communication, Control
Conductor Insulation		Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness		0.0380" (0.965mm)
Shield Coverage		100%
Shield Material		Aluminum
Shield Type		Foil
Conductor Material		Copper, Bare
Jacket Color		Black
Voltage		300 V

RESOURCE TYPE		LINK
Datasheets		M9520010 BK002

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8544.49.3080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
