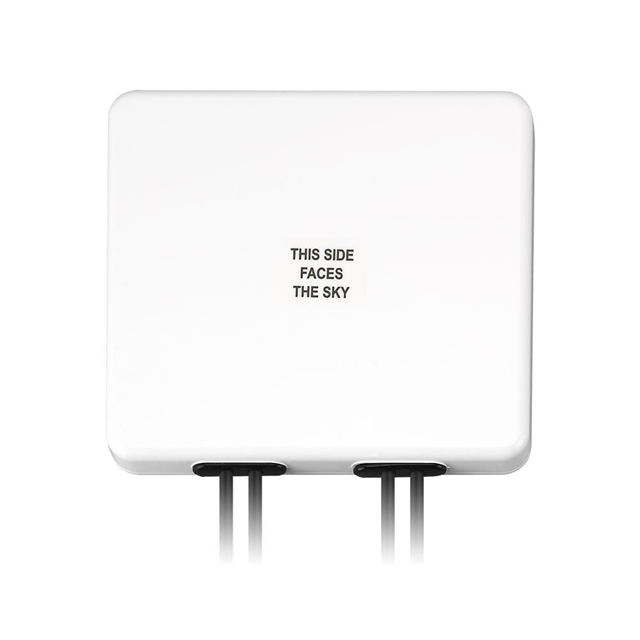

MA961.W.A.BICG.002

MA961.W.A.BICG.002

Part Number	MA961.W.A.BICG.002
Manufacturer	Taoglas
Other Part Numbers	931-1578-ND 931-1578
Description	GUARDIAN MA961.W 4-IN-1 2*LTE MI
Detailed Description	750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 3.45GHz, 5.375GHz DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi Module RF Antenna 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 4.9GHz ~ 5.85GHz 3.03dBi, 2.42dBi, 0.85dBi, 2.73dBi, 2.73dBi, 3.2dBi, 3.17dBi, 2.51dBi, 1.86dBi, 2.46dBi RP-SMA Male Adhesive
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Taoglas
Series		Guardian
Packaging		Box
Part Status		Active
Features		Cable - 3m
Mounting Type		Adhesive
Frequency Range		698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 4.9GHz ~ 5.85GHz
Applications		DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi
Gain		3.03dBi, 2.42dBi, 0.85dBi, 2.73dBi, 2.73dBi, 3.2dBi, 3.17dBi, 2.51dBi, 1.86dBi, 2.46dBi
Termination		RP-SMA Male
Ingress Protection		IP67
Number of Bands		10
VSWR		3
Antenna Type		Module
Height (Max)		0.787" (20.00mm)
Frequency Group		Wide Band
Frequency (Center/Band)		750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 3.45GHz, 5.375GHz
RF Family/Standard		Cellular, General ISM, Navigation, WiFi

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MA961.W.A.BICG.002
Datasheets		Taoglas Limited RoHS

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8517.71.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
