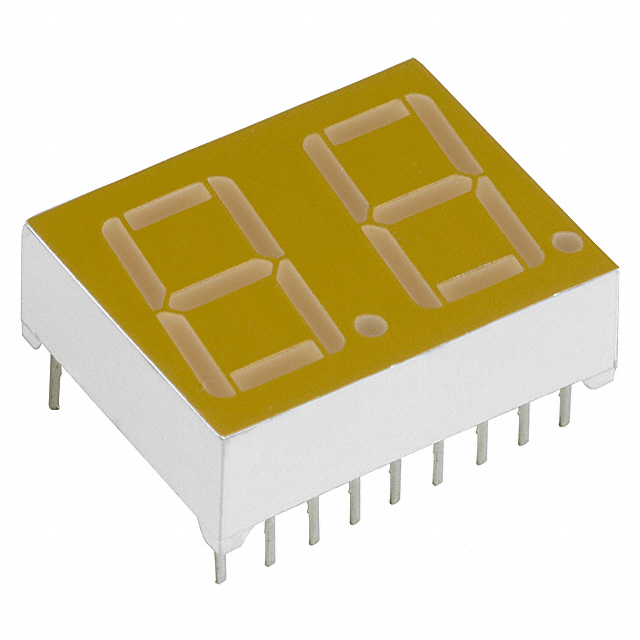

MAN6610

MAN6610

Part Number	MAN6610
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	MAN6610-ND MAN6610-NDR
Description	LED 7-SEG DUAL CA ORN RHDP .56"
Detailed Description	Display Modules - LED Character and Numeric Orange 7-Segment 2 Character Common Anode 2.5V (Max) 20mA 0.750" H x 0.985" W x 0.315" D (19.05mm x 25.02mm x 8.00mm) 18-DIP (0.600", 15.24mm)
Datasheet	Datasheet

Product Attributes

Category		Optoelectronics LED Character and Numeric
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Bulk
Part Status		Obsolete
Package / Case		18-DIP (0.600", 15.24mm)
Color		Orange
Display Type		7-Segment
Size / Dimension		0.750" H x 0.985" W x 0.315" D (19.05mm x 25.02mm x 8.00mm)
Number of Characters		2
Millicandela Rating		2.2mcd
Common Pin		Common Anode
Digit/Alpha Size		0.56" (14.22mm)
Voltage - Forward (Vf) (Typ)		2.5V (Max)
Current - Test		20mA
Wavelength - Peak		630nm
Power Dissipation (Max)		1.2W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		onsemi RoHS

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

Obsolete

This product is no longer manufactured.
