MASMCJLCE11AE3

Part Number
MASMCJLCE11AE3
Manufacturer Roving Networks (Microchip Technology)
Other Part Numbers
1086-6121-ND
1086-6121-MIL
1086-6121

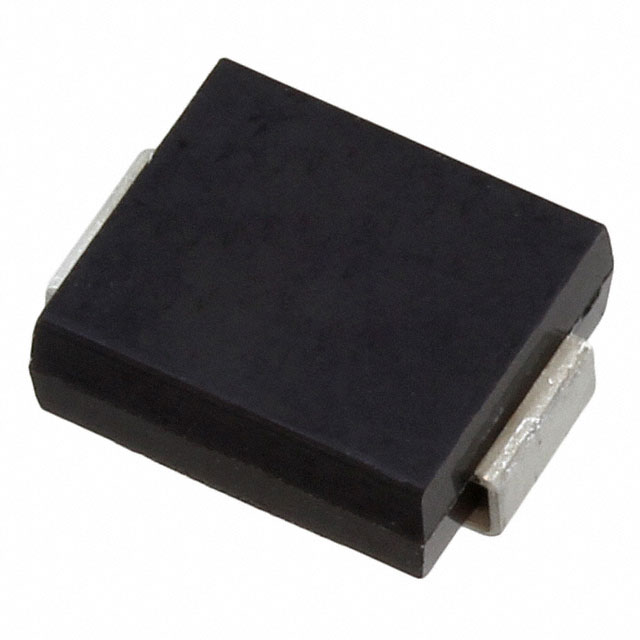

Description TVS DIODE 11VWM 18.2VC DO214AB
Detailed Description 18.2V Clamp 82A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)
Manufacturer Standard Lead Time 40 weeks

Product Attributes

Category
Manufacturer Roving Networks (Microchip Technology)
Series
Packaging
Bulk
Part Status Active
Package / Case DO-214AB, SMC
Mounting Type Surface Mount
Type Zener
Operating Temperature -65°C ~ 150°C (TJ)
Applications General Purpose
Capacitance @ Frequency 100pF @ 1MHz
Current - Peak Pulse (10/1000µs) 82A
Voltage - Reverse Standoff (Typ) 11V
Supplier Device Package DO-214AB (SMCJ)
Unidirectional Channels 1
Voltage - Breakdown (Min) 12.2V
Voltage - Clamping (Max) @ Ipp 18.2V
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Grade Military
Qualification MIL-PRF-19500

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant
