MAX1557ETB+T _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	MAX1557ETB+T
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	MAX1557ETB+TTR-ND MAX1557ETB+TCT-ND MAX1557ETB+TDKR-ND MAX1557ETB+TDKR MAX1557ETB+T-ND MAX1557ETB+TTR MAX1557ETB+TCT
Description	IC REG BUCK ADJ 600MA 10TDFN
Detailed Description	Buck Switching Regulator IC Positive Adjustable (Programmable) 0.75V (1V, 1.3V, 1.5V) 1 Output 600mA 10-WFDFN Exposed Pad
Manufacturer Standard Lead Time	22 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

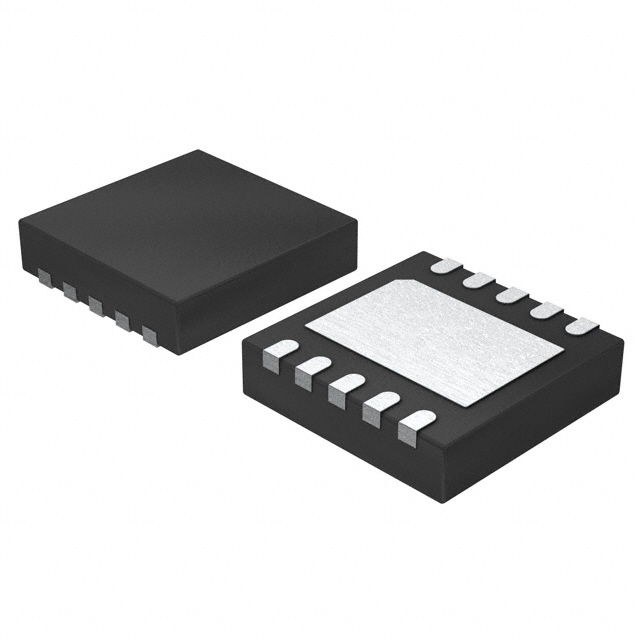

Package / Case		10-WFDFN Exposed Pad
Output Type		Adjustable (Programmable)
Mounting Type		Surface Mount
Number of Outputs		1
Function		Step-Down
Current - Output		600mA
Operating Temperature		-40°C ~ 85°C (TA)
Output Configuration		Positive
Frequency - Switching		1MHz
Voltage - Input (Max)		5.5V
Topology		Buck
Supplier Device Package		10-TDFN (3x3)
Synchronous Rectifier		Yes
Voltage - Output (Max)		5.5V
Voltage - Input (Min)		2.6V
Voltage - Output (Min/Fixed)		0.75V (1V, 1.3V, 1.5V)

RESOURCE TYPE		LINK
Datasheets		MAX1557ETB+T
Datasheets		Power-Supply Solutions for Altera FPGAs
Datasheets		Power-Supply Solutions for Xilinx FPGAs
Datasheets		Maxim Integrated RoHS Cert
Datasheets		Maxim Integrated REACH
Datasheets		Material Declaration MAX1557ETB+T
Datasheets		Part Numbering System

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
