MAX1644EAE+ _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	MAX1644EAE+
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	MAX1644EAE+-ND -4941-MAX1644EAE+
Description	IC REG BUCK ADJ 2A 16SSOP
Detailed Description	Buck Switching Regulator IC Positive Adjustable (Programmable) 1.1V (2.525V, 3.33V) 1 Output 2A 16-SSOP (0.209", 5.30mm Width)
Manufacturer Standard Lead Time	21 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Tube
Part Status		Active

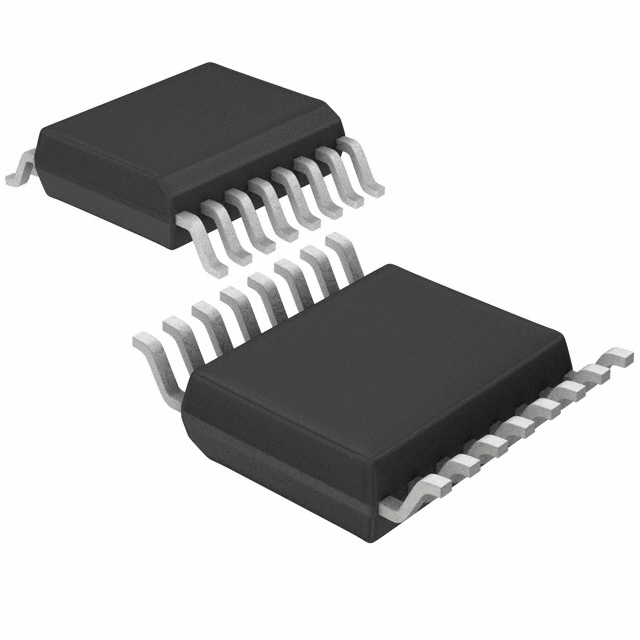

Package / Case		16-SSOP (0.209", 5.30mm Width)
Output Type		Adjustable (Programmable)
Mounting Type		Surface Mount
Number of Outputs		1
Function		Step-Down
Current - Output		2A
Operating Temperature		-40°C ~ 85°C (TA)
Output Configuration		Positive
Frequency - Switching		Up to 350kHz
Voltage - Input (Max)		5.5V
Topology		Buck
Supplier Device Package		16-SSOP
Synchronous Rectifier		Yes
Voltage - Output (Max)		5.5V
Voltage - Input (Min)		3V
Voltage - Output (Min/Fixed)		1.1V (2.525V, 3.33V)

RESOURCE TYPE		LINK
Datasheets		MAX1644EAE+
Datasheets		Reduce the Chances of Human Error: Part 1, Power and Ground
Datasheets		Dual Voltage Tracking Circuit for I/O, Microprocessor, and DSP Core Voltages
Datasheets		Accurate DC-DC Converter Minimizes Wasted Power
Datasheets		Maxim Integrated RoHS Cert
Datasheets		Maxim Integrated REACH
Datasheets		Material Declaration MAX1644EAE+
Datasheets		Part Numbering System

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
