MAX1705EEE+T _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	MAX1705EEE+T
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	175-MAX1705EEE+TTR-ND 175-MAX1705EEE+TCT-ND 175-MAX1705EEE+TDKR-ND 175-MAX1705EEE+TTR 175-MAX1705EEE+TTR-ND 175-MAX1705EEE+TCT 505-MAX1705EEE+TTR-ND MAX1705EEE+T-ND 505-MAX1705EEE+TTR 175-MAX1705EEE+TDKR
Description	IC REG BOOST ADJ 1A 16QSOP
Detailed Description	Boost Switching Regulator IC Positive Adjustable 2.5V 1 Output 1A (Switch) 16-SSOP (0.154", 3.90mm Width)
Manufacturer Standard Lead Time	23 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

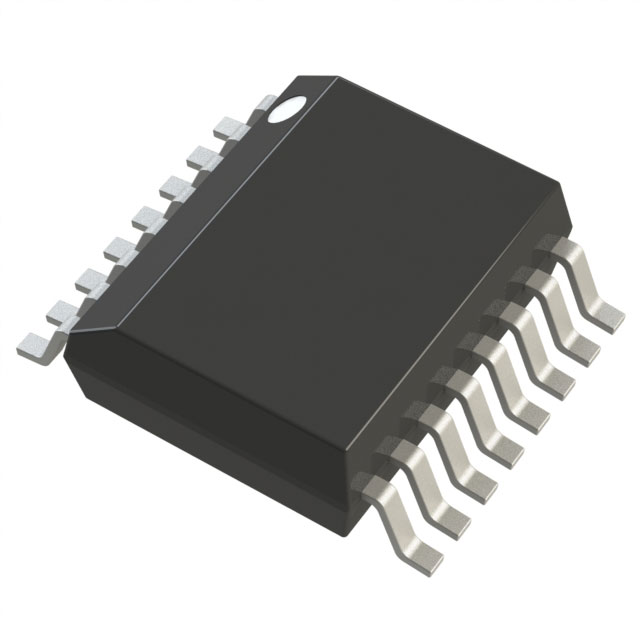

Package / Case		16-SSOP (0.154", 3.90mm Width)
Output Type		Adjustable
Mounting Type		Surface Mount
Number of Outputs		1
Function		Step-Up
Current - Output		1A (Switch)
Operating Temperature		-40°C ~ 85°C (TA)
Output Configuration		Positive
Frequency - Switching		260kHz ~ 340kHz
Voltage - Input (Max)		5.5V
Topology		Boost
Supplier Device Package		16-QSOP
Synchronous Rectifier		No
Voltage - Output (Max)		5.5V
Voltage - Input (Min)		0.9V
Voltage - Output (Min/Fixed)		2.5V

RESOURCE TYPE		LINK
Datasheets		MAX1705EEE+T
Datasheets		Extend Battery Life with Dual Power Supply for Wallcube/Battery-Powered Systems
Datasheets		Wireless-Modem Power for Hand-Held Devices
Datasheets		Trading Performance for Cost in Portable Power Supplies
Datasheets		Maxim Integrated RoHS Cert
Datasheets		Maxim Integrated REACH
Datasheets		Part Numbering System

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
