MAX20416ATGB/V+

MAX20416ATGB/V+

Part Number
MAX20416ATGB/V+
Manufacturer Maxim Integrated / Analog Devices
Other Part Numbers
505-MAX20416ATGB/V+-ND
-4941-MAX20416ATGB/V+
175-MAX20416ATGB/V+
175-MAX20416ATGB/V+-ND
505-MAX20416ATGB/V+
Description IC REG BCK 1.5/1.4V 3A DL 24TQFN
Detailed Description Buck Switching Regulator IC Positive Fixed 1.5V, 1.4V 2 Output 3A, 3A 24-WFQFN Exposed Pad
Manufacturer Standard Lead Time 25 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Maxim Integrated / Analog Devices
Series
Packaging
Strip
Part Status Active

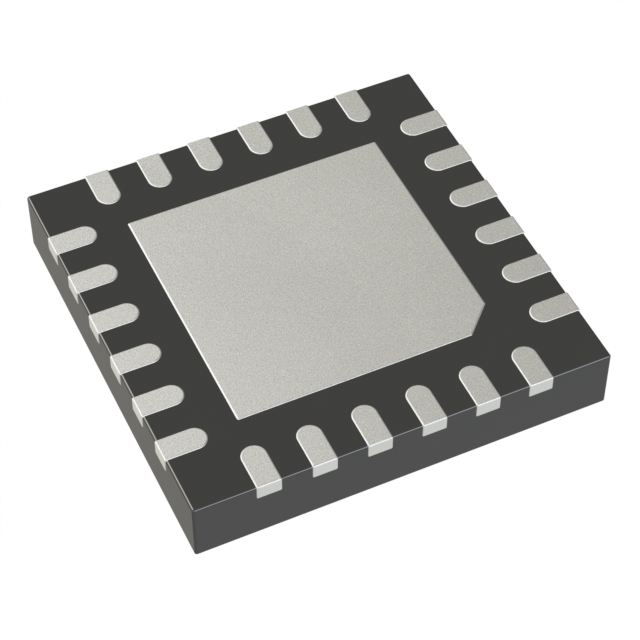

Package / Case 24-WFQFN Exposed Pad
Output Type Fixed
Mounting Type Surface Mount
Number of Outputs 2
Function Step-Down
Current - Output 3A, 3A
Operating Temperature -40°C ~ 125°C (TA)
Output Configuration Positive
Frequency - Switching 2.2MHz
Voltage - Input (Max) 5.5V
Topology Buck
Supplier Device Package 24-TQFN (4x4)
Synchronous Rectifier Yes
Voltage - Input (Min) 3V
Voltage - Output (Min/Fixed) 1.5V, 1.4V
Grade Automotive
Qualification AEC-Q100

Documents & Media

RESOURCE TYPE LINK
Datasheets MAX20416ATGB/V+
Datasheets Maxim Integrated RoHS Cert
Datasheets Maxim Integrated REACH

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
