MAX42405AFOB+ _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	MAX42405AFOB+
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	505-MAX42405AFOB+-ND 175-MAX42405AFOB+-ND 175-MAX42405AFOB+ 505-MAX42405AFOB+
Description	36V, 5A/6A SYNCH BUCK CONV QFN
Detailed Description	Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 6A 17-PowerWFQFN
Manufacturer Standard Lead Time	21 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Tray
Part Status		Active

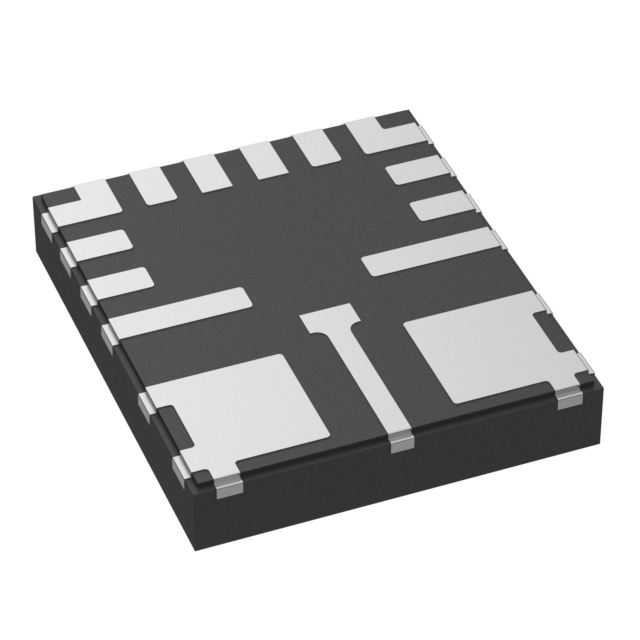

Package / Case		17-PowerWFQFN
Output Type		Adjustable
Mounting Type		Surface Mount, Wettable Flank
Number of Outputs		1
Function		Step-Down
Current - Output		6A
Operating Temperature		-40°C ~ 125°C (TJ)
Output Configuration		Positive
Frequency - Switching		1.5MHz
Voltage - Input (Max)		36V
Topology		Buck
Supplier Device Package		17-FC2QFN (3.5x3.75)
Synchronous Rectifier		Yes
Voltage - Output (Max)		10V
Voltage - Input (Min)		4.5V
Voltage - Output (Min/Fixed)		0.8V

RESOURCE TYPE		LINK
Datasheets		MAX42405AFOB+

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
