MAX631AESA _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	MAX631AESA
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	2156-MAX631AESA-ND MAXMAXMAX631AESA 2156-MAX631AESA
Description	IC REG BOOST ADJ/2V 450MA 8SOIC
Detailed Description	Boost, Charge Pump Switching Regulator IC Positive or Negative Adjustable (Fixed) 2V (5V) 1 Output 450mA (Switch) 8-SOIC (0.154", 3.90mm Width)

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Bulk
Part Status		Active

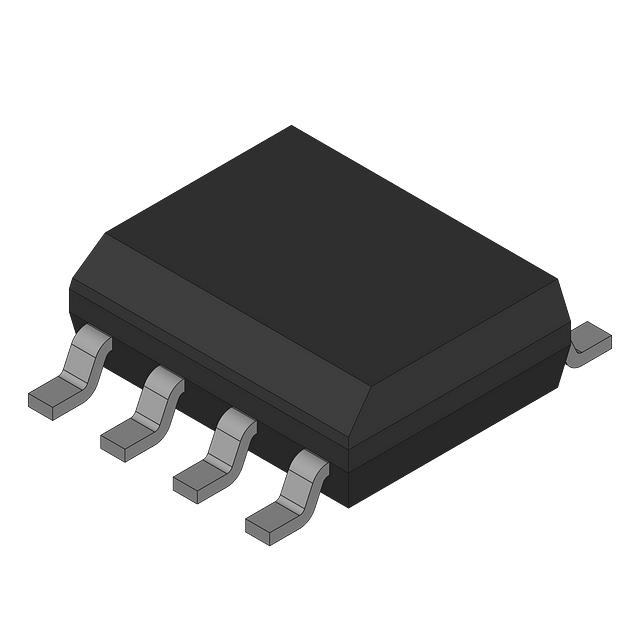

Package / Case		8-SOIC (0.154", 3.90mm Width)
Output Type		Adjustable (Fixed)
Mounting Type		Surface Mount
Number of Outputs		1
Function		Step-Up
Current - Output		450mA (Switch)
Operating Temperature		-40°C ~ 85°C
Output Configuration		Positive or Negative
Frequency - Switching		45kHz
Voltage - Input (Max)		16.5V
Topology		Boost, Charge Pump
Supplier Device Package		8-SOIC
Synchronous Rectifier		No
Voltage - Output (Max)		18V (Switch)
Voltage - Input (Min)		2V
Voltage - Output (Min/Fixed)		2V (5V)

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
